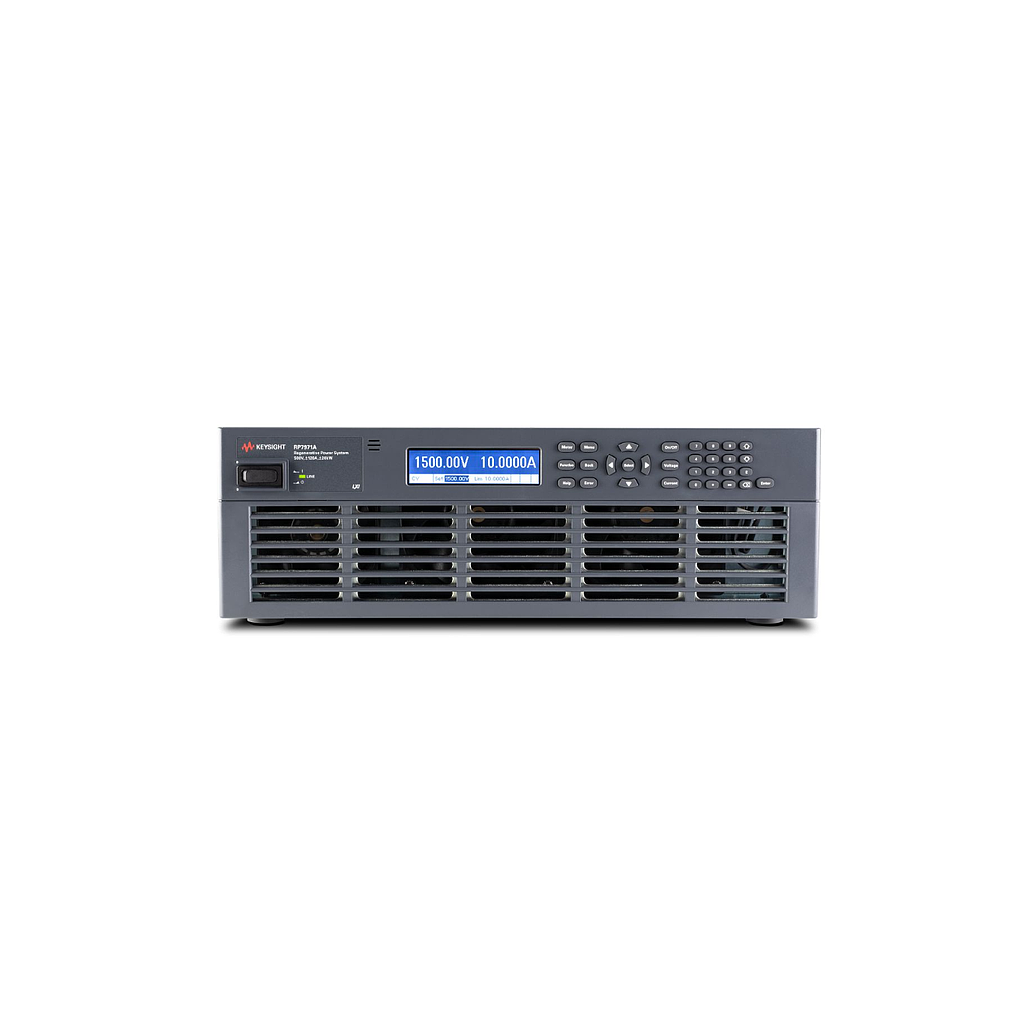

KEYSIGHT RP7971A Regenerative Power System (500 V, ±120 A, 20 kW)

DC Ratings:

Voltage source:  0 to 500V

Current source and sink : 0 to ± 120 A

Power:  0 to ± 20 kW

Output ripple and noise:

CV peak-to-peak (1):  0.75V

CV rms (2):  150mV

Load regulation:

Voltage (3):  25mV

Current : 16mA

Voltage programming and measurement accuracy (4):  0.04% + 40 mV

Current programming and measurement accuracy (4):  0.03% + 12 mA

Transient response (5):

Recovery Time : 300 μs

Settling band:  5 V

(1). From 20 Hz to 20 MHz (-3 dB bandwidth) with resistive load, terminals ungrounded, or either terminal grounded.

(2). From 20 Hz to 10 MHz (-3 dB bandwidth) with resistive load, terminals ungrounded, or either terminal grounded.

(3). Also applies when remote sensing with a ≤ 1 V drop per load lead.

(4). Percent of value + offset; at 25 °C ± 5 °C after a 30-minute warm-up; measurement NPLC=1; valid for 1 year.

(5). Time to recover to within the settling band following a step change from 40% to 90% and 90% to 40% of full load at Comp 0 with a 40 μs current rise and fall time.
