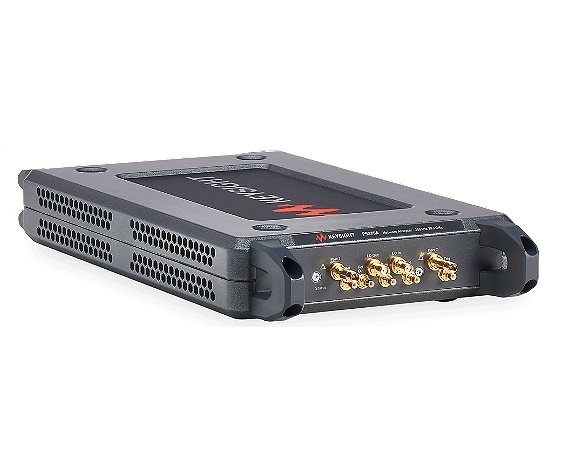

KEYSIGHT P9375A Streamline USB Vector Network Analyzer (300kHz~26.5GHz; 2 ports)

• Frequency: 300 kHz to 26.5 GHz

• Number of Built-In Ports: 2

• Dynamic range: 104dB at > 20 to 24 GHz

• Noise Floor: –98 dB at > 20 to 24 GHz

• Maximum Output Port Power (dBm): +1dbm at > 20 to 24 GHz

• Phase noise: –66 dBc/Hz at > 20 to 26.5 GHz

• High temperature stability: +/-0.020 dB/degree C at > 20 to 26.5 GHz

• PC System Requirement: Win7/10, USB 3.0

• Dimensions / Weight: 176x48x333mm, 1.90kg

• Electrical Power: DC, 15 V, 42 W

• Connector Type: 3.5 mm female, 50 ohm

• Accessories: Main unit, Instruction.

Datasheet

Selection Guide

Brochure

Configuration Guide
