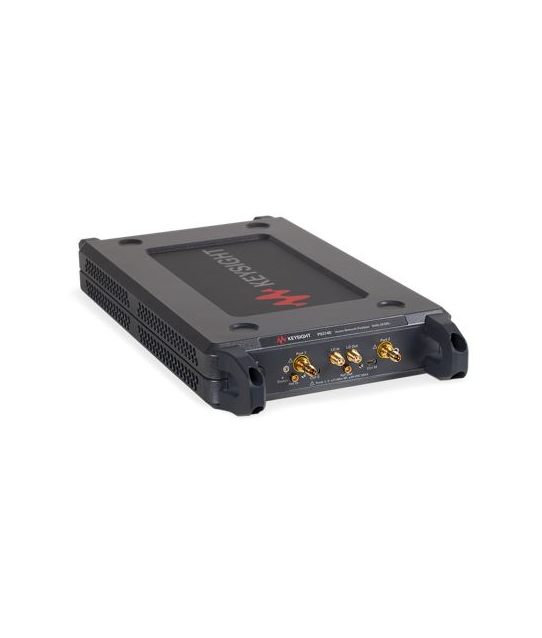

KEYSIGHT P9373B (P9373B-001) Streamline Vector Network Analyzer (9 kHz to 14 GHz, 2-port)

System dynamic range (spec): 10 Hz IF bandwidth

At 4 GHz: 115 dB

At 20 GHz: 105 dB

At 40 GHz: -

Maximum output power (spec)

At 4 GHz: +8 dBm

At 20 GHz: +4 dBm

At 40 GHz: -

Power sweep range (typ.)

At 4 GHz: -60 to +7 dBm

At 20 GHz: -60 to +7 dBm

At 40 GHz: -

Test port noise floor (spec)

At 4 GHz: -107 dBm

At 20 GHz: -101 dBm

At 40 GHz: -

Receiver compression at test port (spec)

At 4 GHz: 0.2 dB (mag) / 5 degree (phase), at +8 dBm input power at test port

At 20 GHz: 0.2 dB (mag) / 5 degree (phase), at +4 dBm input power at test port

At 40 GHz: -

Trace noise (spec)

At 4 GHz: 0.0015 dB rms / 0.01 degree rms

At 20 GHz: 0.003 dB rms / 0.03 degree rms

At 40 GHz: -

Temperature stability (typ.)

At 4 GHz: 0.005 dB/deg.C (mag) / 0.1 degree/deg.C (phase)

At 20 GHz: 0.02 dB/deg.C (mag) / 0.4 degree/deg.C

(phase)

At 40 GHz: -

External PC system requirements

Operating systems: Windows 10 (64-bit)

Available memory: 16 GB recommended, 4 GB minimum

Available disk space: 4 GB minimum

Display resolution: 1024 x 768 minimum

Connection with VNA: Thunderbolt 3 and Thunderbolt 4

Recommended CPU: Intel Core i7 10th Generation or later recommended

Instrument drivers

Keysight IO: Libraries Keysight IO Libraries Suite 2022 Update 1 (18.2.28014.7) or later

Rear panel information

Thunderbolt 3 Ports: USB Type-C, 2 ports (for connection with a host PC)

USB Ports: Type A female (USB 2.0 only), 2-ports (for connection with USB peripherals)

Include: P9373B-001 Vector network analyzer activation software for P9373B
