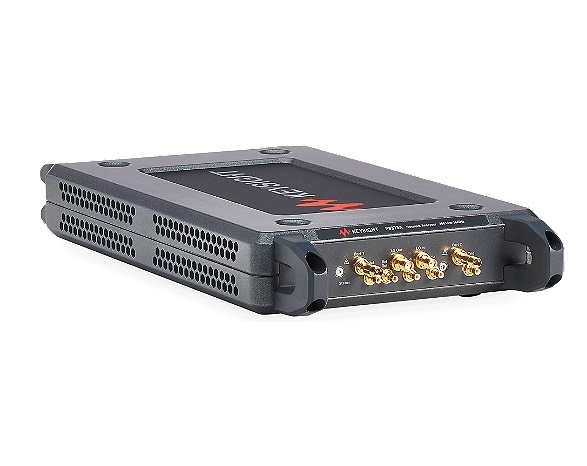

KEYSIGHT P9373A Streamline USB Vector Network Analyzer (300kHz~14GHz; 2 ports)

• Frequency: 300 kHz to 14 GHz

• Number of Built-In Ports: 2

• Dynamic range: 120dB at > 9 to 14 GHz

• Noise Floor: –108 dB at > 9 đến 14 GHz

• Maximum Output Port Power (dBm): +8dbm at > 9 to 14 GHz

• Phase noise: –78 dBc/Hz at > 5 to 10 GHz

• High temperature stability: +/-0.015 dB/degree C at > 9 to 14 GHz

• PC System Requirement: Win7/10, USB 3.0

• Dimensions / Weight: 176x48x333mm, 1.90kg

• Electrical Power: DC, 15 V, 42 W

• Connector Type: 3.5 mm female, 50 ohm

• Accessories: Main unit, Instruction.
