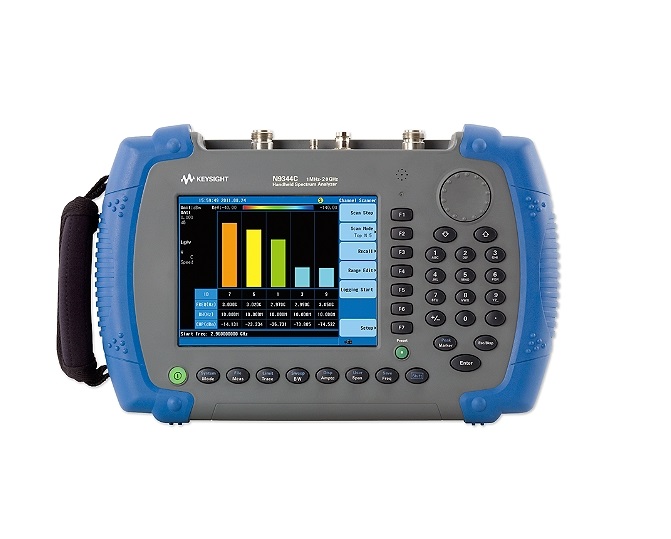

KEYSIGHT N9344C Handheld Spectrum Analyzer (1MHz-20GHz)

• Frequency range 1 MHz to 20 GHz

• DANL @1 GHz: -155 dBm

• TOI: +15 dBm

• Tracking generator: 7 GHz

• Overall Amplitude Accuracy: ±1.3 dB

• Resolution bandwidth (RBW): –3 dB bandwidth: 10 Hz to 3 MHz

• Detectors: Normal, positive peak, sample, negative peak, average (video, RMS, voltage), quasi-peak (option EMC required)

• Display:

- Resolution: 640 x 480 pixels

- Size and type: 6.5 inch (170 mm) TFT color display

• Net (shipping) weight: approximately 3.2 kg (7 Ibs); 3.6 kg (7.9 Ibs) with battery

• Dimensions (W x H x D): Approximately 318 × 207 × 69 mm (12.5 in x 8.15 in x 2.7 in)
