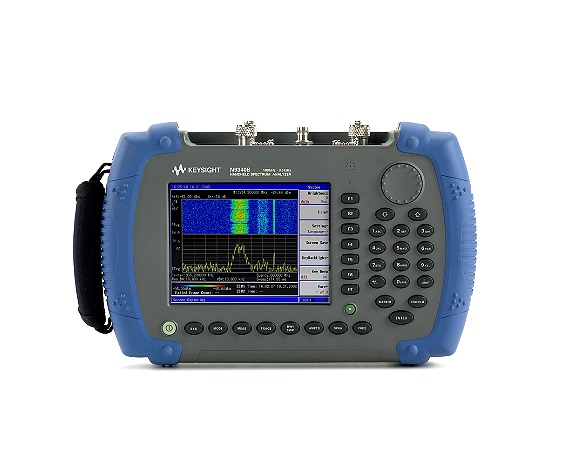

KEYSIGHT N9340B Handheld Spectrum Analyzer (100kHz-3GHz)

• Frequency range 100 kHz to 3 GHz (tunable to 9 kHz)

• DANL @1 GHz: -158 dBm

• TOI @1 GHz (3rd Order Intercept): +10 dBm

• Overall Amplitude Accuracy: ±1.5 dB

• Resolution bandwidth (RBW): –3 dB bandwidth: 30 Hz to 1 MHz

• Detectors: Normal, Positive Peak, Sample, Negative Peak, Average (Video, RMS, Voltage)

• Display:

- Resolution: 640 x 480 pixels

- Size and type: 6.5 inch (170 mm) TFT color display

• Net (shipping) weight: approximately 3.2 kg (7 Ibs); 3.5 kg (7.7 Ibs) with battery

• Dimensions (W x H x D): Approximately 318 × 207 × 69 mm
