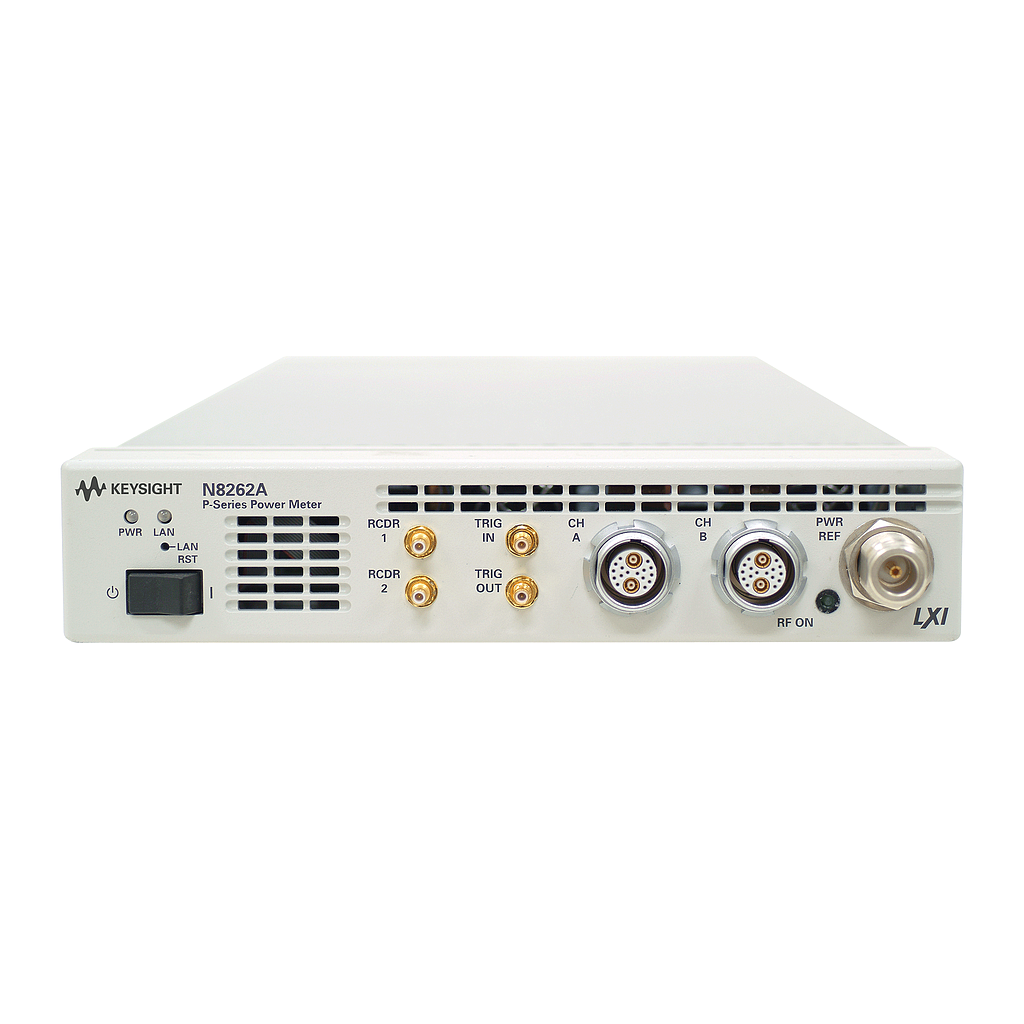

KEYSIGHT N8262A Modular Power Meter (100 Msamples/s)

Maximum sampling rate: 100 Msamples/sec, continuous sampling

Video bandwidth: ≥ 30 MHz

Single shot bandwidth: ≥ 30 MHz

Rise time and fall time: ≤ 13 ns (for frequencies ≥ 500 MHz), see Figure 1 (in Datasheet)

Minimum pulse width: 50 ns

Overshoot: ≤ 5%

Average power measurement accuracy

N1921A: ≤ ± 0.2 dB or ± 4.5%

N1922A: ≤ ± 0.3 dB or ± 6.7%

Dynamic range

–35 to +20 dBm (> 500 MHz)

–30 to +20 dBm (50 to 500 MHz)

Maximum pulse repetition rate :10 MHz (based on 10 samples per period)
