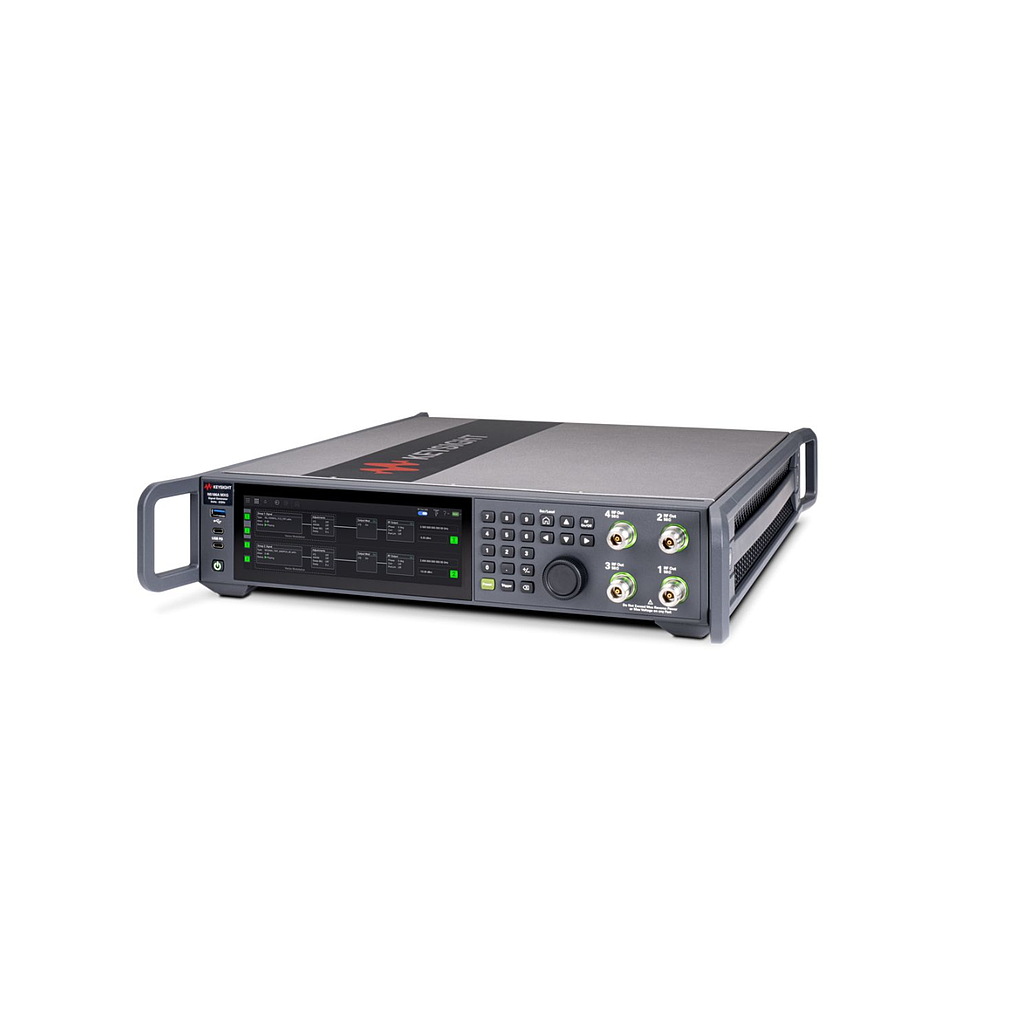

KEYSIGHT N5186A MXG High-Performance Multichannel Vector Signal Generator (9 kHz ~ 6 GHz)

Bandwidth options: 250 MHz / 500 MHz / 1 GHz

Form factor: Benchtop

CW frequency range: 9 kHz ~ 6 GHz

Harmonics @ 1 GHz: -35 dBc

Maximum bandwidth: 1 GHz

Maximum modulation bandwidth: 1 GHz

Non-Harmonics @ 1 GHz: -80 dBc

Output power @ 1 GHz: +25 dBm

Phase noise @ 1 GHz (10 kHz offset): -146 dBc/Hz

Sweep mode: Step, List

Waveform playback memory: 2048 MSa

Baseband generator mode: Waveform playback

Frequency: 8.5 GHz

Frequency switching speed: 800 µs

Maximum frequency: 8.5 GHz

Maximum output power: 25 dBm

Number of outputs: 1 to 4

Performance level: ★★★★★

Phase noise @ 1 GHz (20 kHz offset): -147 dBc/Hz

Type: Vector
