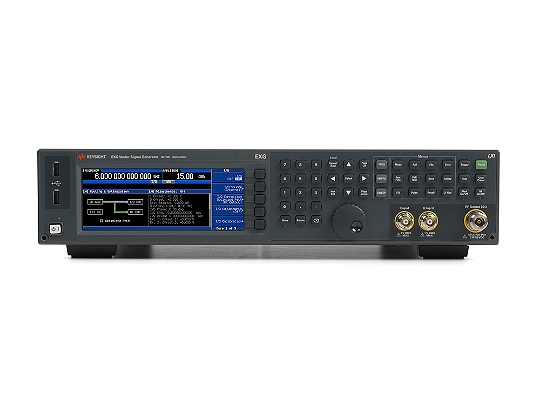

KEYSIGHT N5171B EXG RF Analog Signal Generator (9kHz~6GHz)

• Frequency ranges: 9 kHz to 6 GHz

• Phase noise at 1 GHz, 20 kHz offset: –122 dBc/Hz

• Spurious at 1 GHz (nonharmonics): –72 dBc

• Output power at 1 GHz: +27 dBm

• ACPR (vector) W-CDMA 64 DPCH: –73 dBc

• EVM (vector) 802.11ac/LTE: 0.4 percent

• Bandwidth (vector): 160 MHz

• Arbitrary waveform memory (vector): 512 MSa

• Power requirements: 220-240 VAC, 50/60 Hz; 160 W maximum

• Dimensions: 88 mm H x 426 mm W x 489 mm L

• Weight: ≤ 13.6 kg (30 lb) net, ≤ 28.6 kg (63 lb) shipping
