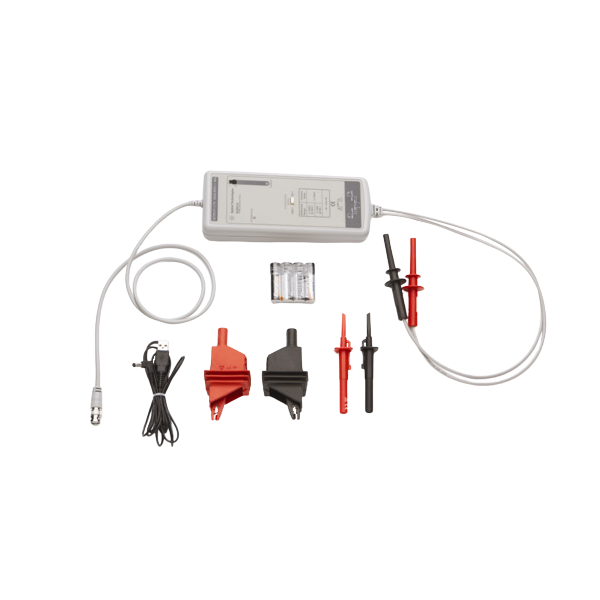

KEYSIGHT N2891A High-Voltage Differential Probes (70 MHz, ± 7000V)

Specifications:

Bandwidth: 70 MHz

Attenuation ratio: 100:1 / 1000:1

Input R//C (each input to ground): 50 Mohm // 7 pF

Input R//C (between inputs): 100 Mohm //5 pF

Max differential operating voltage (DC+PeakAC or RMS)

± 7000 V or 5000 Vrms at 1000:1

± 700 V or 700 Vrms at 100:1

Max common mode operating voltage (DC+PeakAC or RMS)

± 7000 V or 5000 Vrms at 1000:1

± 7000 V or 5000 Vrms at 100:1

Max nondestructive voltage

± 7000 V (DC + Peak AC)

± 5000 Vrms at 1000:1 and 100:1 in differential and common mode (Main Isolated)

Output maximum voltage range: 7 V into 1 Mohm (1000:1)
