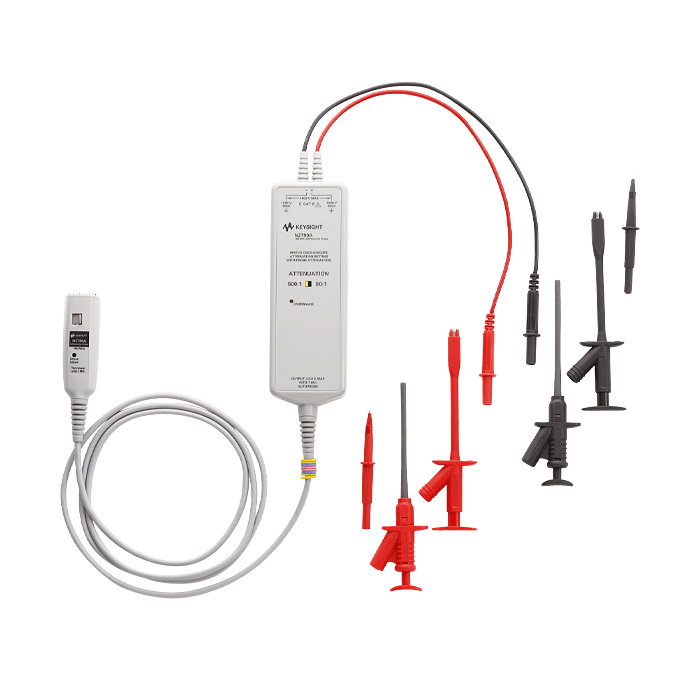

KEYSIGHT N2790A High-Voltage Differential Probes (100 MHz, ± 1500V)
ManufacturerKEYSIGHT(View more products from this manufacturer)
ModelN2790A
USD 3,164.40
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications:
Bandwidth: 100 MHz
Attenuation ratio: 50:1 / 500:1
Input R//C (each input to ground): 4 Mohm // 7 pF
Input R//C (between inputs): 8 Mohm // 3.5 pF
Max differential operating voltage (DC+PeakAC or RMS)
± 1400 V at 500:1
± 140 V at 50:1
Max common mode operating voltage (DC+PeakAC or RMS)
± 1000 V (CAT II)
± 600 V (CAT III)
Max nondestructive voltage
± 1500 VDC + Peak AC differential mode
± 1300 Vrms (CAT II) common mode
Output maximum voltage range: ± 2.8 V into 1 Mohm (500:1)
