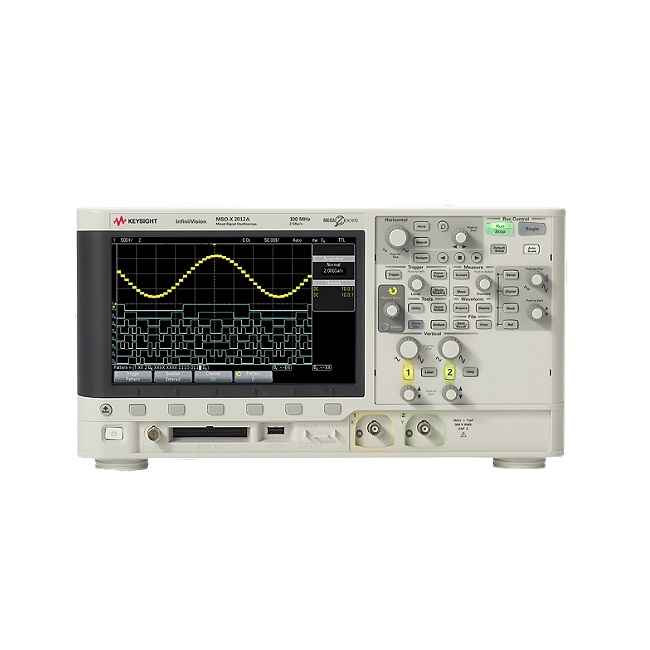

KEYSIGHT MSOX2012A InfiniiVision Oscilloscope (100 MHz, 2 + 8CH, 2 GSa/s)

Bandwidth: 100 MHz

Analog channel: 2

Digital channel: 8

Maximum sample rate: 2 GSa/s half-channel interleaved, 1 GSa/s per channel

Maximum memory depth: 1M points per channel (standard)

Display: 8.5" WVGA color display

Vertical sensitivity: 1 mV/div to 5 V/div

Maximum input voltage: 190 Vpk

Time base range: 5 ns/div to 50 s/div

Waveform math: Add, subtract, multiply, FFT

Connectivity: USB 2.0, Supports memory devices and printers

Dimensions: 381 mm (15 in) x 204 mm (8 in) x 142 mm (5.6 in)

Weight: Net: 3.9 kg (8.5 lbs.)

See the datasheet to choose suitable options
