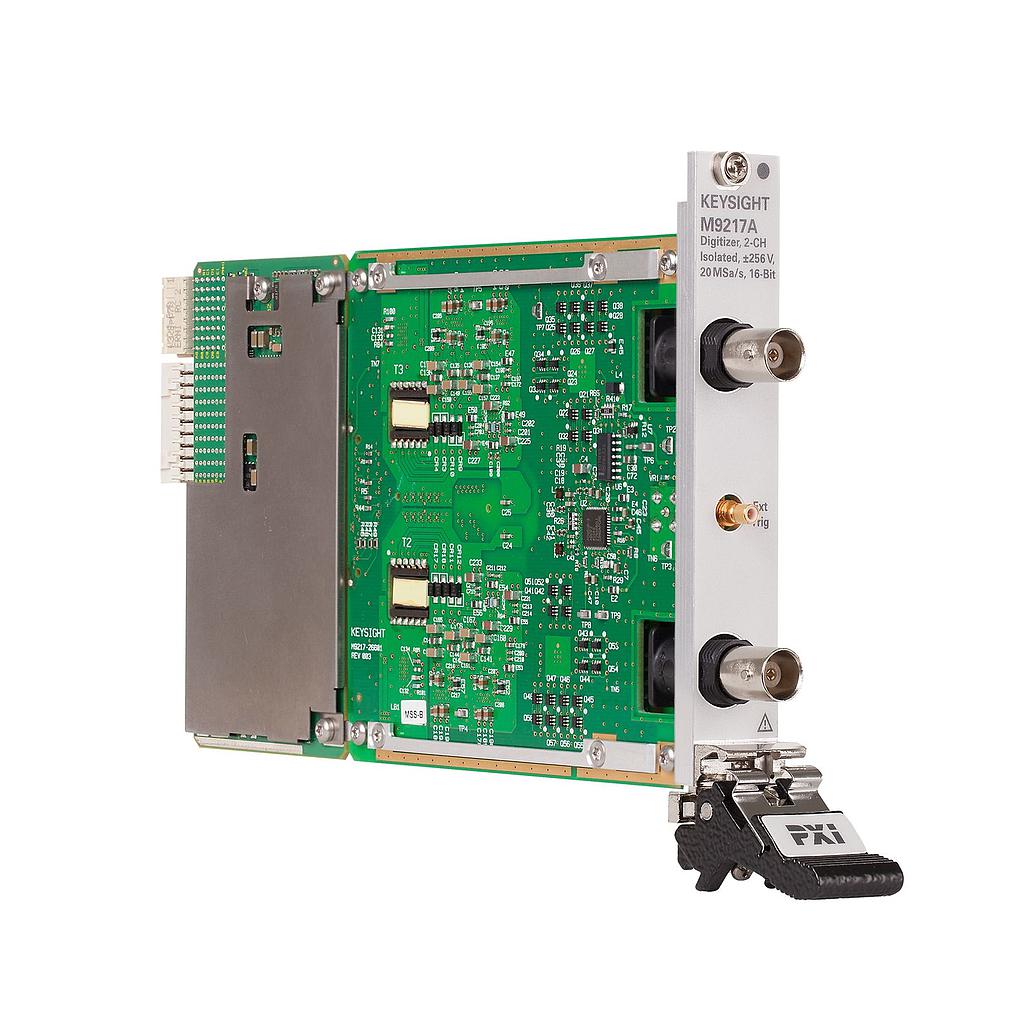

KEYSIGHT M9217A PXIe Isolated Digitizer (2-channels, 16-bit, ±256 V, 32 Msa/Ch 2-channels, 16-bit, ±256 V, 32 Msa/Ch memory)

2-channel isolated, with ADCs per channel, simultaneously sampled channels

Max sample rate: 20 MSa/s

Sample resolution: 16 bits

Isolation voltage (low to chassis): +40 V

Maximum input range (high to low): +256 Vpk

Input impedance: 1 MW // 40 pF

Input coupling: DC or AC

AC cutoff frequency: < 10 Hz

Input ranges: ±256 V, ±128 V, ±64 V, ±32 V, ±16 V, ±8 V, ±4V, ±2 V, ±1 V, ±500 mV, ±250 mV

Maximum overvoltage protection: ±400 Vppk

Analog bandwidth (-3 dB): 20 MHz typical

See the datasheet to choose suitable options

Datasheet
