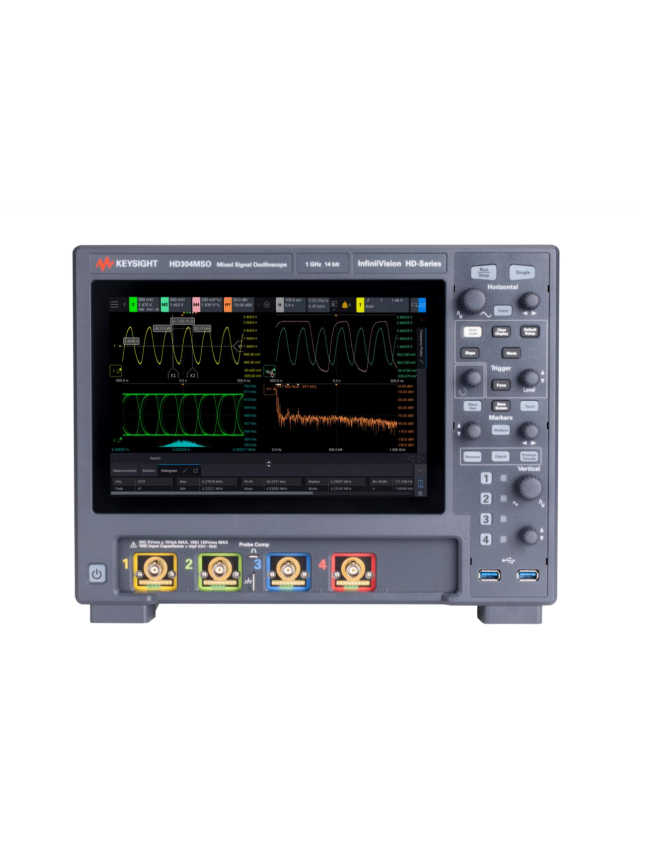

KEYSIGHT HD304MSO InfiniiVision Oscilloscope (200 MHz; 3.2 GSa/s, 4+16CH)

Bandwidth (-3 dB): 200 MHz

Calculated rise time (10 to 90%): ≤ 2.0 ns

Analog Channels: 4

Maximum sample rate: 3.2 GSa/s per channel

Maximum memory depth: 100 Mpts per channel

Display size and type: 10.1-inch capacitive touch gesture-enabled display

Waveform update rate: Uncompromised > 1,300,000 waveforms per second

Vertical system analog channels

Hardware bandwidth limits:

20, 40, 50, 100, 200, 350 MHz (selectable), per-channel

5, 10, 20, 40, 50, 100, 200, 350 MHz (selectable), global

Input coupling: AC, DC

Input impedance:

50 Ω ± 1.5%2

1 MΩ ± 1% ll ~24pF

Input sensitivity range:

50 Ω 500 uV/div to 1 V/div

1 MΩ 500 uV/div to 10 V/div

Vertical resolution: 14 bits (16 bits using bandwidth limits)

DC vertical gain accuracy: ±1.5% full scale3

DC voltage measurement accuracy:

Dual cursor: ± [(DC gain accuracy) + 0.16% full scale]1

Single cursor: ± [(DC gain accuracy) + (offset accuracy) + 0.08% full scale]

DC vertical offset accuracy: ± 0.1 div ± 1 mV ± 1.5% of offset setting

Channel-to-channel isolation: > 100:1 from DC to maximum specified bandwidth of each model

(measured with same V/div and coupling on channels)

Vertical system digital channels

Digital input channels: 16 digital (D0 to D15. pod 1: D3 ~ D0, Pod 2: D7 ~ D4, Pod 3: D11 ~ D8, Pod 4: D15 ~ D12)

Thresholds: Threshold per pod

Threshold selections: TTL (+1.4 V), 5 V CMOS (+2.5 V), ECL (–1.3 V), user-defined (selectable by pod)

User-defined threshold range: ± 8.0 V in 10 mV steps

Maximum input voltage: ± 40 V peak

Threshold accuracy: ± (100 mV + 3% of threshold setting)

Maximum input dynamic range: ± 10 V about threshold

Minimum voltage swing: 500 mVpp

Input impedance: 100 kΩ ± 2% at probe tip

Input capacitance: ~8 pF

Vertical resolution: 1 bit
