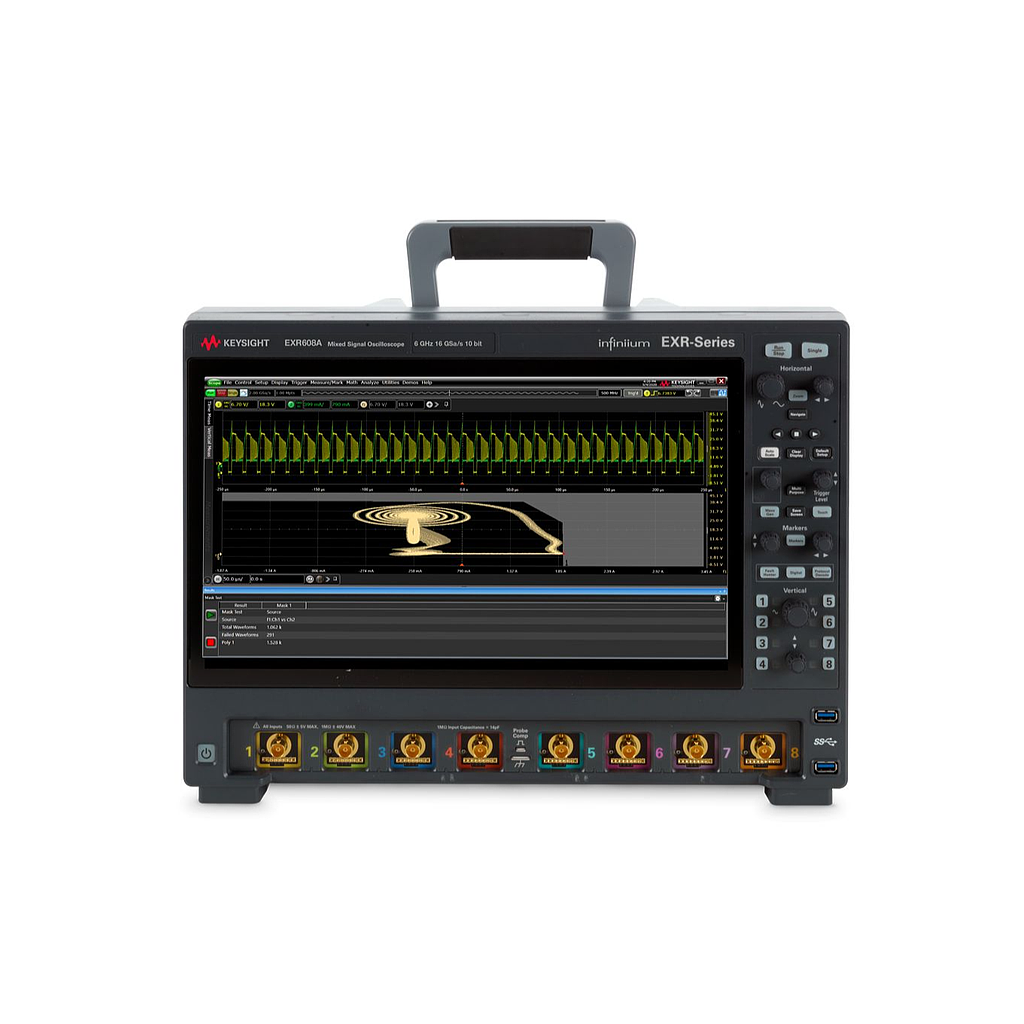

KEYSIGHT EXR608A + KeysightCare + Keysight Warranty + EXR000-500 + EXR000-100 Oscilloscope (6 GHz, 8 CH)

Bandwidth (-3 db): 6 GHz

Input channels: 8 channels analog BNC

Sample rate, real-time: 16 GSa/s, all analog channels 1

Sample resolution: 62.5 ps (divide by interpolation factor, if enabled)

Vertical resolution: 10 bits, up to 16 bits with high-resolution mode

Real-time update rate: > 200,000 waveforms/sec

Memory depth:

Standard: 100 Mpts/channel, all channels

Optional: 400 Mpts/channel, all channels (400 Mpts/ch option)

1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option)

Input impedance

50 Ω: ± 3.5% (typically ± 1% at 25 °C)

1 MΩ: ± 1% (14 pF typical)

Input sensitivity:

50 Ω: 1 mV/div to 1 V/div

1 MΩ: 1 mV/div to 5 V/div

Input coupling:

50 Ω: DC

1 MΩ: DC, AC (> 11 Hz)

Bandwidth limit filters

Analog: 20 MHz, 200 MHz

Digital: 14.7 MHz up to scope bandwidth, increments of one decimal point. Filter options: Brick Wall, 4th Order Bessel, or Bandpass

Max input voltage

50 Ω: ± 5 VMAX 1

1 MΩ: 30 VRMS or ± 40 VMAX (DC + VPEAK)

Notes: Probing technology allows for testing of higher voltages; the included N2873A 10:1 probe

supports 300 VRMS or ± 400 VMAX (DC + VPEAK). No transient overvoltage allowed in either the

50 Ω or 1 MΩ path, with or without probes.

Offset accuracy: < 2 V: ± 0.1 div ± 2 mV ± 1%; >2 V: ± 0.1 div ± 2 mV ± 1.5%

Dynamic range: ± 4 divisions from center screen

DC gain accuracy: ± 2% full scale (±1% typical)

DC voltage measurement accuracy:

Dual cursor: ± [(DC gain accuracy) + (resolution)]

Single cursor: ± [(DC gain accuracy) + (offset accuracy) + (resolution/2)]

Channel-channel isolation:

Adjacent Channels: ≤ -60 dB (DC to 2 GHz), ≤ -50 dB (2 to 6 GHz)

Non-Adjacent Channels: ≤ -85 dB (DC to 2 GHz), ≤ -65 dB (2 to 6 GHz)

Includes:

KeysightCare Technical Support - 3 years

Return to Keysight Warranty - 3 years.

EXR000-500 Standard 500 GB Removable SSD

EXR000-100 Standard 100 Mpts/ch Memory

Datasheet
