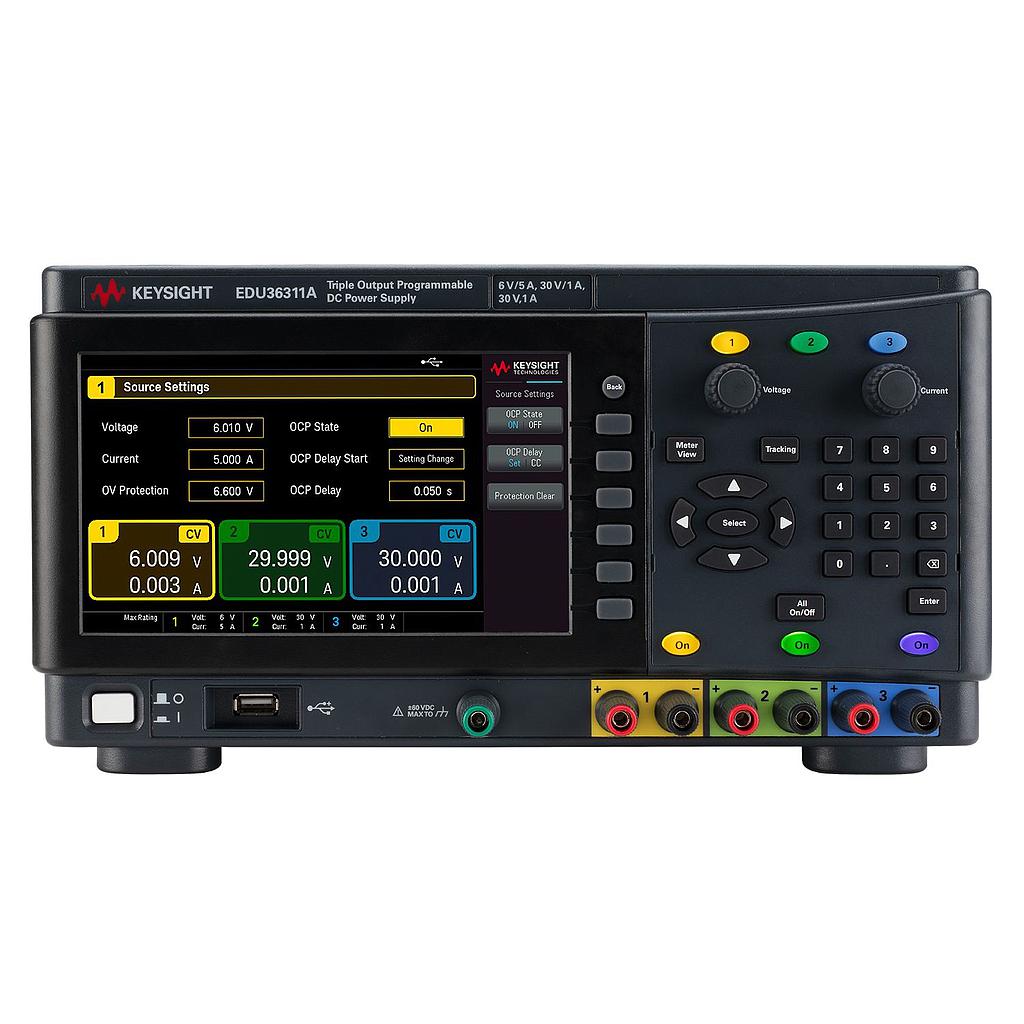

KEYSIGHT EDU36311A DC Power Supply (triple output, 90 W)

Power output: 90 W

DC output rating (0 to 40ºC):

1: 0 to 6V; 0 to 5A

2: 0 to 30V; 0 to 1A

3: 0 to 30V; 0 to 1A

Load regulation ± (% of output + offset)

Voltage: < 0.01% + 2 mV

Current: < 0.2% + 10 mA

Line regulation ± (% of output + offset)

Voltage: < 0.01% + 2 mV

Current: < 0.2% + 10 mA

Accuracy 12 months (23 ºC ± 5 ºC)

Programming accuracy ± (% of output + offset)

Voltage: 0.1% + 5 mV / 0.05% + 10 mV

Current: 0.1% + 10 mA / 0.2% + 5 mA

Readback accuracy ± (% of output + offset)

Voltage: 0.1% +5 mV / 0.05% + 10 mV

Current: 0.1% +10 mA / 0.2% + 5 mA

Load transient recovery time

Voltage setting band: 15mV

Time: <50 uS
