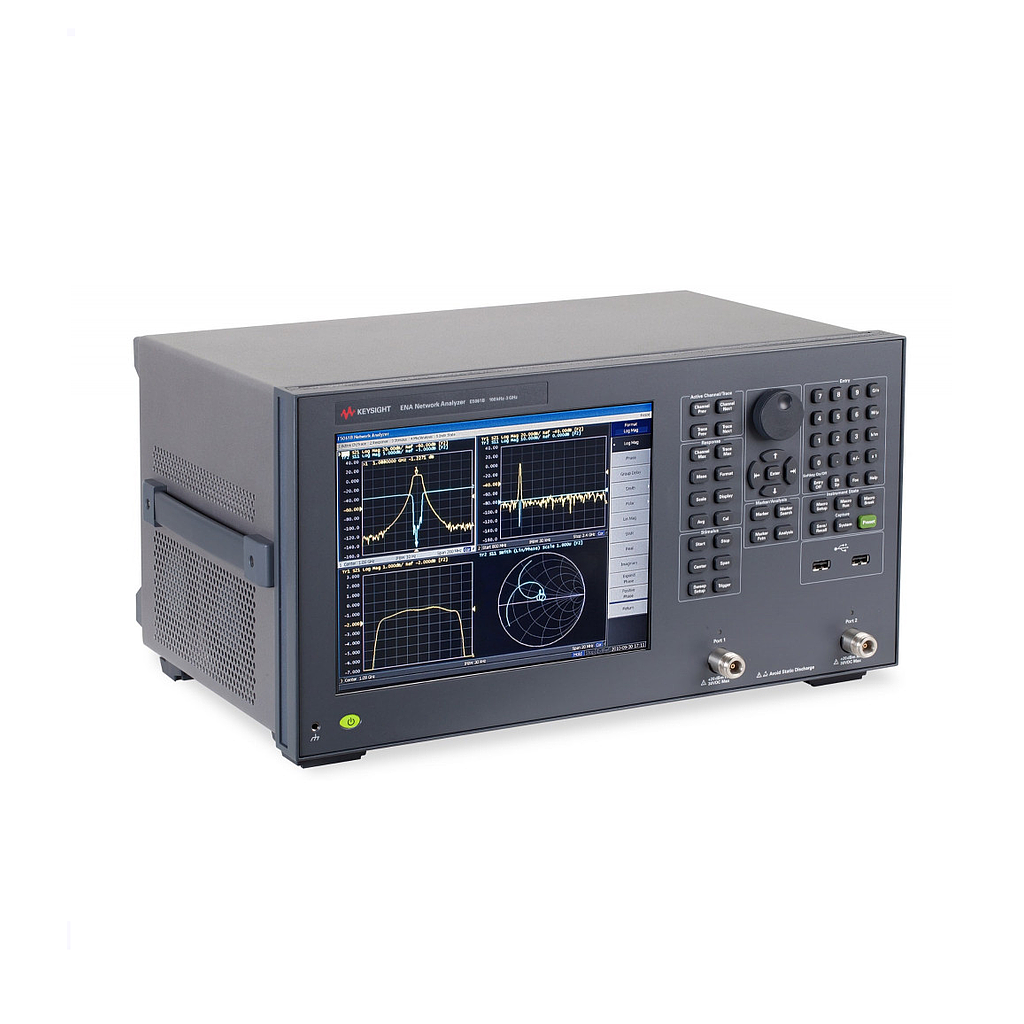

KEYSIGHT E5061B-3L3 LF-RF Vector Network Analyzer

Impedance analysis functions

Impedance parameters: |Z|, θz , |Y|, θy, Cp, Cs, Lp, Ls, Rp, Rs, D, Q, R, X, G, B

Measurement methods: Port 1 Reflection, Port 2 Reflection, Port 1-2 Series-thru, Port 1-2 Shunt-thru, Gain-phase Series-thru, Gain-phase Shunt-thru

Equivalent circuit analysis: 3-component model (4 models: A/B/C/D), 4-component model (1 model: E)

Source characteristics

Test frequency: 5 Hz to 500 MHz/1.5 GHz/3 GHz (Port-1 and 2), 5 Hz to 30 MHz (Gain-Phase test port), 1 mHz resolution

AC source power (Osc level): –45 to + 10 dBm (when the source port is terminated with 50 Ω)

DC voltage bias: 0 to ±40 V (100 mA max.) 1 mV resolution (0 V to ±10 V), 4 mV resolution

(10 V to 40 V, -10 V to -40 V), DC bias monitor available (voltage or current)

Output impedance: 50 Ω (nominal)

Sweep characteristics

Sweep types: Linear frequency sweep, Logarithmic frequency sweep, Segment sweep, Power sweep (in dBm unit), DC bias sweep

Sweep direction: Up sweep

Number of point: 2 to 1601

Error correction (for impedance measurements)

Calibration: Impedance calibration (open/short/load and optional low-loss capacitor). Response thru calibration, Full 1-port calibration, Full 2-port calibration, ECal 1,Port extensions.

Fixture compensation: Fixture selection (port extension for 7 mm fixtures), open/short/load compensation
