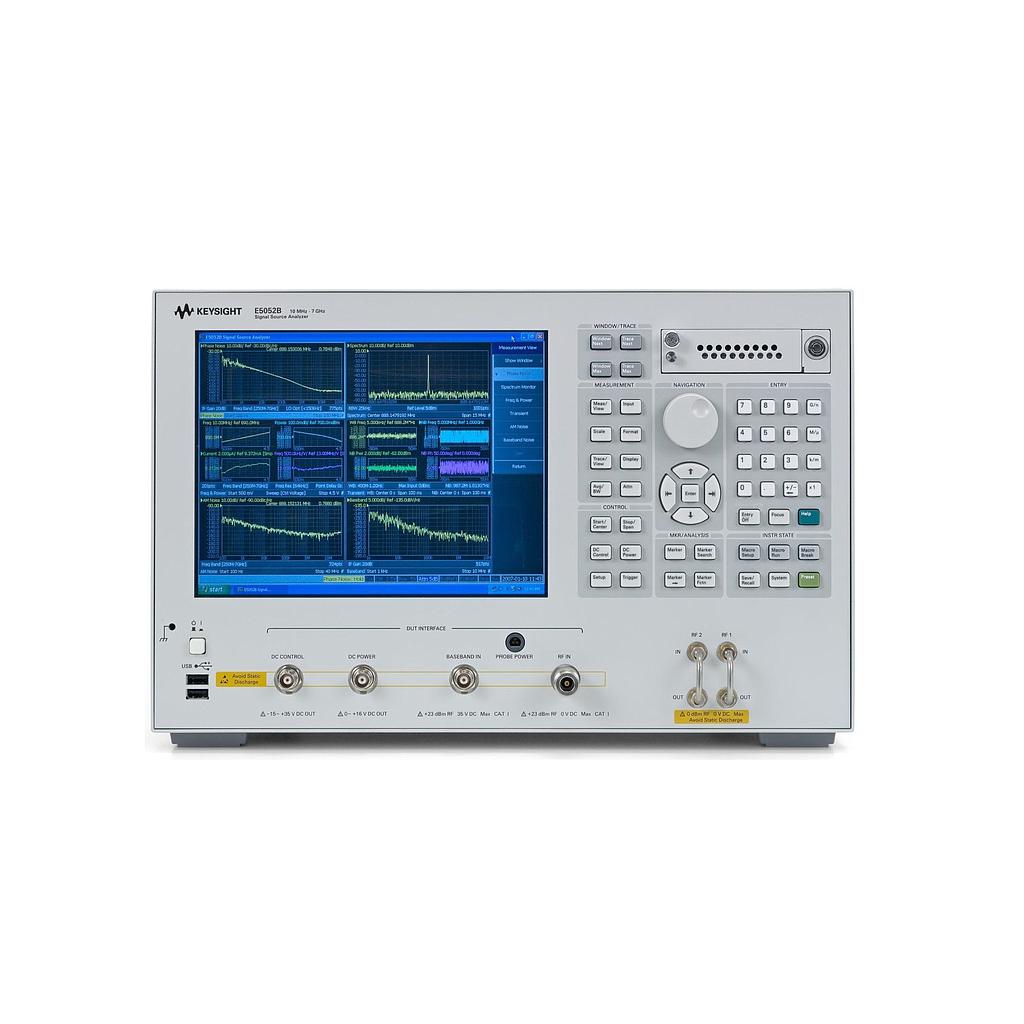

KEYSIGHT E5052B SSA Signal Source Analyzer (10 MHz to 7 GHz, 26.5 GHz, or 110 GHz)

Type: Benchtop

Measurement Type: CW

Measurement Parameters: SSB phase noise (dBc/Hz), Spurious noise (dBc), Integrated rms phase deviation (deg & rad) or time jitter, Integrated rms phase deviation (deg & rad) or time jitter, Residual FM (Hz rms)

Frequency: 10 MHz to 7 GHz

Cross-Correlation Analysis: Yes

Number of Cross Correlations: 10 to 10000

Residual Noise: -95 dBm

Spurious: -80 dBc

Offset Analysis Range: 1 Hz to 100 MHz

Input Power Range: -20 to 20 dBm

See the datasheet to choose suitable options

Datasheet
