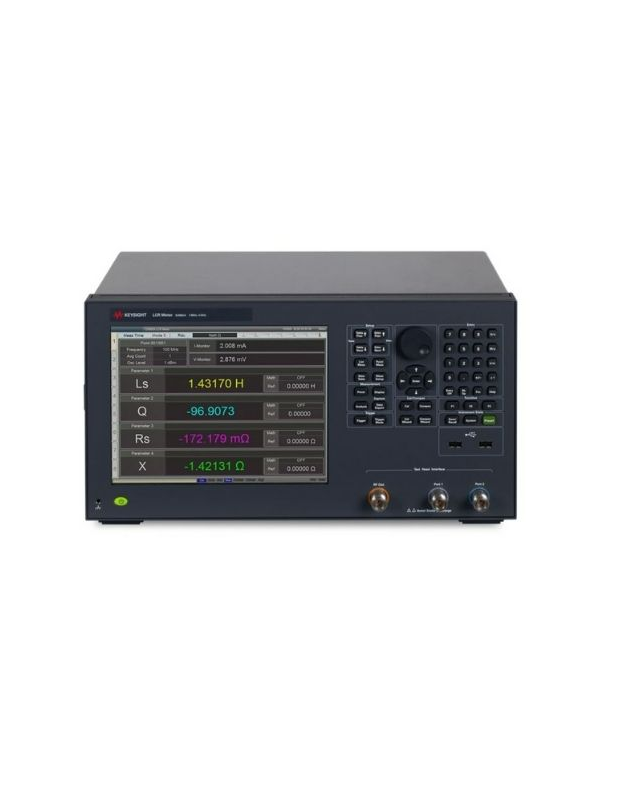

KEYSIGHT E4982A+(option E4982A-300, E4982A-700 16195B, E4982A-710, E4982A-720, E4982A-019) LCR Meter (1 MHz ~ 3 GHz)

Frequency

Range: 1 MHz to 3 GHz

Resolutionz: 1 kHz 1

Oscillator level

Cable length = 1 m

Power range (When 50 Ω LOAD isconnected to test port)

–40 dBm to 1 dBm

Current range (When SHORT is connected to test port)

0.0894 mArms to 10 mArms

Voltage range (When OPEN is connected to test port)

4.47 mVrms to 502 mVrms

Uncertainty (When 50 Ω LOAD is connected to test port)

(23 °C ± 5 °C)

± 2 dB (frequency ≤ 1 GHz)

± 3 dB (frequency > 1 GHz)

(5 °C to 40 °C)

± 4 dB (frequency ≤ 1 GHz)

± 5 dB (frequency > 1 GHz)

Resolution 0.1 dB (When the unit is set at mV or mA, the entered value is rounded to 0.1 dB resolution.)

Includes:

E4982A-700 16195B: Calibration Kit

E4982A-710: Test Fixture Stand

E4982A-720: 3.5mm to 7mm Coaxial Adapter

E4982A-019: Standard Data Storage
