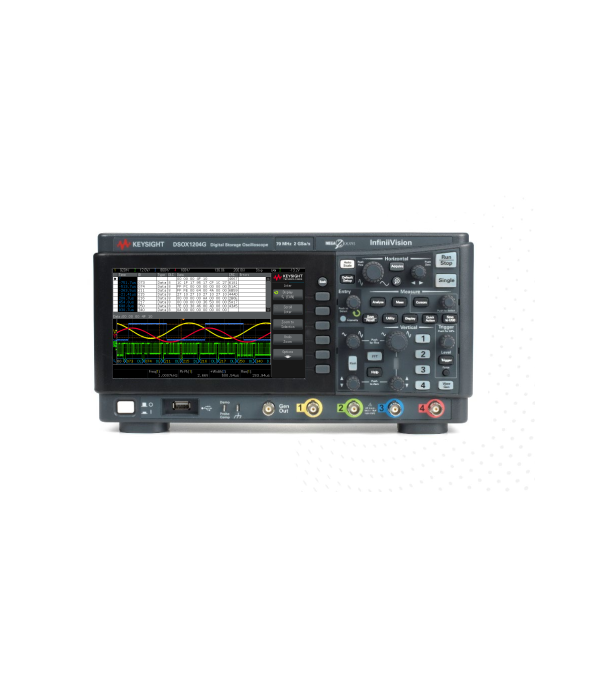

KEYSIGHT DSOX1204G InfiniiVision Oscilloscope (200MHz, 2 GSa/s, 4CH)

Bandwidth:

70 MHz (base bandwidth)

200 MHz (D1200BW2A)

Analog channels: 4

External trigger: Back panel input (not displayed)

Sample rate per channel (max):

2 GSa/s (one- or half-channel1 operation)

1 GSa/s (three- or four-channel operation)

Memory depth per channel (max):

2 M points (one- or half-channel1 operation)

1 M points (three- or four-channel operation)

WaveGen: 20-MHz function generator

Bode plot: Standard

Waveform update rate: 200,000 waveforms per second

Serial protocol analysis: Standard : I²C, SPI, UART/RS-232, CAN, LIN

Segmented memory: Standard

Mask/limit testing: Standard

Built-in training signals: Standard

Integrated digital voltmeter: Standard

Frequency counter: Standard

Waveform math: Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter

Automatic measurements: 14 amplitude, 14 timing, and 4 pulse count measurements

Display: 7-inch TFT LCD WVGA

Connectivity: USB 2.0 (host and device), LAN
