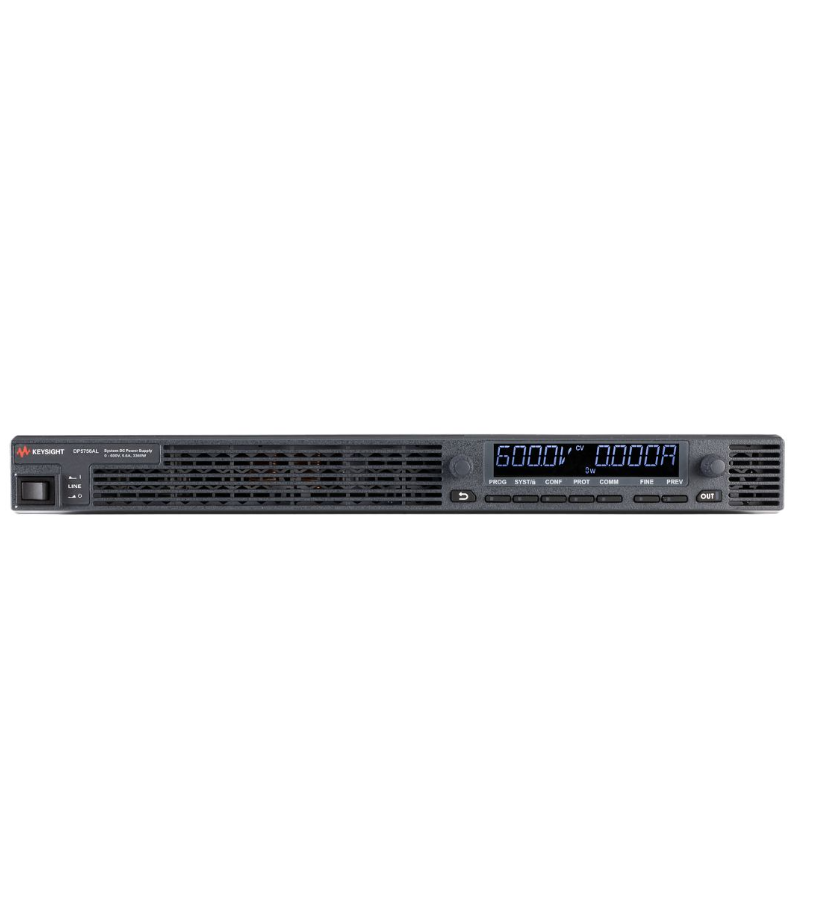

KEYSIGHT DP5741AL DC Power Supply (10V, 340A, 3400W, In 3ph 200 - 240 VAC)

AC input

Connections: L1, L2, L3, PE (3-phase with protective earth; no neutral)

Voltage: 200 VAC -15% to 240 VAC +10%, line-to-line

Maximum Phase Current (A RMS): 13.1 A

Frequency: 50/60 Hz

DC Power Ratings

• Voltage: 0 to 10 V

• Current: 0 to 340 A

• Power: 3,400 W

Output Ripple and Noise

• CV rms: 8 mV

• CV peak-to-peak: 75 mV

Load Regulation

• Voltage: 6 mV

• Current: 272 mA

Line Regulation

• Voltage: 1 mV

• Current: 170 mA

Voltage Programming Accuracy

• Voltage: 5 mV

Current Programming Accuracy

• Current 0.1%+: 680 mA

Voltage Measurement Accuracy

• Voltage: 5 mV

Current Measurement Accuracy

• Current: 680 mA

Transient Response

• Recovery time: 1 ms

• Settling band: 0.05 V

*For detailed specifications, please refer to the Datasheet.

*Images for illustration purposes only.
