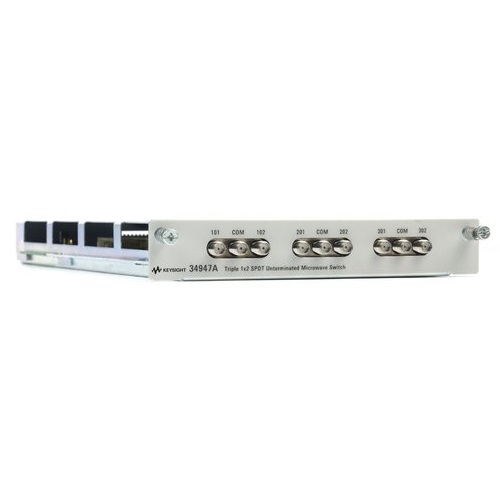

KEYSIGHT 34947A Triple 1x2 SPDT Unterminated Microwave Switch Module (Triple 1x2 SPDT unterminated microwave switch)

Description: Triple 1x2 SPDT unterminated microwave switch

Insertion loss:

< 0.42 dB

< 0.69 dB

< 0.8 dB

Isolation:

> 85 dB

< 0.69 dB

< 0.8 dB

Freq range:

4 GHz or 20 GHz

26.5 GHz

VSWR:

< 1.15

< 1.30

< 1.6

Input impedance: 50 Ω

Accessories

Require standard 50Ω SMA cables and adapters, 8710-2576 SMA Extender for connecting SMA connectors
