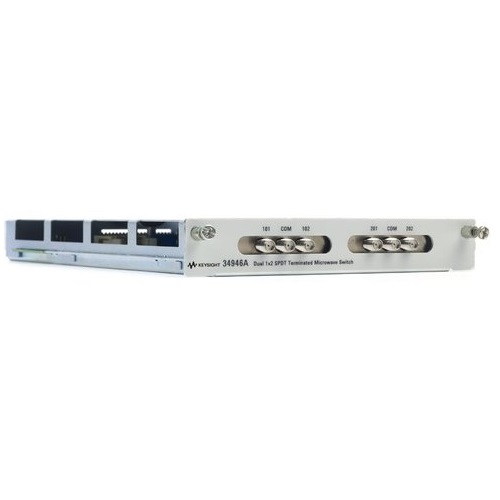

KEYSIGHT 34946A Dual 1x2 SPDT Terminated Microwave Switch (Dual 1x2 SPDT terminated microwave switch)

Description: Dual 1x2 SPDT terminated microwave switch

Insertion loss:

< 0.42 dB

< 0.69 dB

< 0.8 dB

Isolation:

> 85 dB

> 67 dB

> 60 dB

Freq range:

4 GHz or 20 GHz

26.5 GHz

VSWR:

< 1.15

< 1.30

< 1.6

Input impedance: 50 Ω

Accessories

Require standard 50Ω SMA cables and adapters, 8710-2576 SMA Extender for connecting SMA connectors
