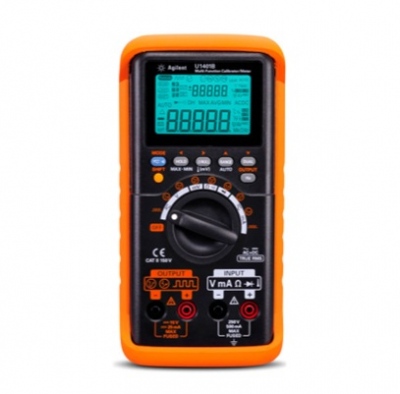

KEYSIGHT U1401B Handheld Multi-function Calibrator/Meter

Measure:

- DC voltage: 50 mV/0.05%, 500 mV, 5 V, 50 V, 50 V, 250 V /0.03%

Resolution: 1 μV, 10 μV, 0.1 mV, 1 mV, 10 mV

- AC voltage (True RMS): 50 mV, 500 mV, 5 V, 50 V, 250 V / 0.7%

Resolution: 1 μV, 10 μV, 0.1 mV, 1 mV, 10 mV

- DC current: 50 mA, 500 mA/0.03%

Resolution: 1 μA, 10 μA

- AC current: 50 mA, 500 mA /0.6%

Resolution: 1 μA, 10 μA

- Thermocouple type K: –40 oC to 1372 oC /0.3% (option)

Resolution: 0.1oC

- Resistance: 500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 50 MΩ /0.15%

Resolution: 0.01 Ω, 0.1 Ω, 1 Ω, 10 Ω, 0.1 kΩ, 1 kΩ

- Test Diode: Yes

- Frequency: 100 Hz, 1 kHz, 10 kHz, 100 kHz, 200 kHz /0.02%

Resolution: 0.001 Hz, 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz

Outputs:

- Constant voltage (CV): +/- 1.5000 V, +/- 15.000 V /0.03%

Resolution: 0.1 mV, 1 mV

- Constant current (CC): +/- 25.000 mA /0.03% ( mỗi dải có 15 bước)

Resolution: 1 μA

Square wave output PWM

- Frequency (Hz): 0.5-4800Hz / 0.005%

Resolution: 0.1Hz

- Duty Cycle (%): 0.39% to 99.60%

- Pulse Width (ms): 1/Frequency

- Amplitude (V): 5 V, 12 V, +/-5 V, +/-12 V /2%

Resolution: 0.1V

Power supply: 9.6 V Ni-MH rechargeable

Dimensions: 192 mm x 90 mm x 54 mm

Include: Quick Start Guide, Certificate of calibration (CoC), Calibrator/meter standard test lead kit, Yellow test lead for mA simulation, Protective holster, Rechargeable battery pack, AC power dapter and cord (according to country)

Option:

U5481A: IR-to-USB cable

U1186A: K-type thermocouple and adapter

U1168A: Standard test lead kit

U5491A: Soft carrying case

U5402A: Yellow test lead for mA simulation
