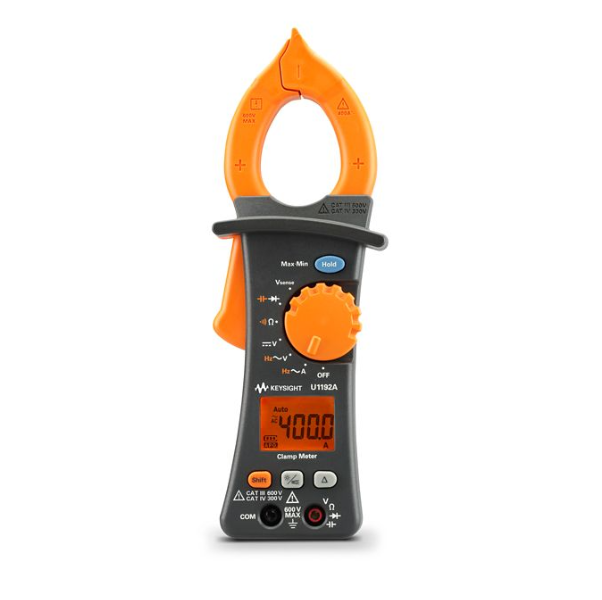

KEYSIGHT U1192A Clamp Meter (AC 400A; Frequency)

- Voltage DC: 60 V, 600 V /0.5%

Resolution: 0.01 V, 0.1 V

- Voltage DC: 60 V, 600 V /1.2%

Resolution: 0.01 V, 0.1 V

- Resistance: 600 Ω, 6 kΩ, 60 kΩ /0.8%

Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ

- Diode: yes

- Current AC: 60 A, 400 A /2%

Resolution: 0.01 A, 0.1 A

- Capacitance: 600 μF, 6 mF /2%

Resolution: 0.1 μF, 0.001 mF

- Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz /0.5%

Resolution: 99.99 kHz, 0.1 Hz, 0.001 kHz, 0.01 kHz

Power supply: 2 x 1.5 V AAA

Dimensions: 77.1 x 238.0 x 38.6

Included Accessories: Test Lead Set; Soft Carrying Case; Quick Start Guide; Batteries; Certificate of Calibration

Optional Accessories

U1178A: Carrying case, soft

U1176A: LED flash light

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1168B: Test lead kit
