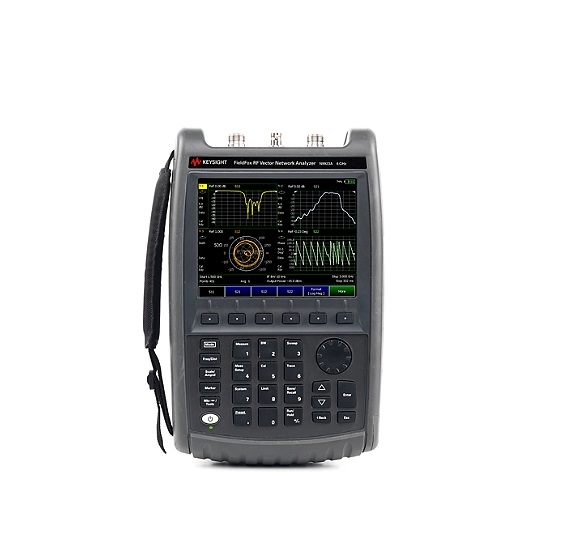

KEYSIGHT N9923A (with option N9923A-104) FieldFox Handheld RF Vector Network Analyzer (2MHz~4GHz)

• Frequency range: 2 MHz to 4 GHz

• Frequency reference:

Accuracy: ±2 ppm

Aging rate: ±1 ppm

Temperature stability: ±1 ppm over –10 to 55 ºC

• Frequency resolution: 1 Hz

• Measurement speed (Sweep time) S11 and S21, 2 MHz to 6 GHz; 30 kHz IFBW, 1001 points: 0.365 ms/point

• Data points 101, 201, 401, 601, 801, 1001, 1601, 4001, 10,001 (custom number of points can be set using SCPI)

• Directivity Corrected: 42 dB

• System dynamic range (S21): 2 MHz to 6 GHz: 100 dB (typical)

• IF bandwidth: 300 Hz, 1 kHz, 3 kHz, 10 kHz, and 30 kHz

• Output power range:

High power: +5 dBm (nominal)

Low power: –40 dBm (nominal)

• Trace noise (high output power, IF band:

Magnitude: < 0.01 dB rms

width = 300 Hz)

• Immunity to interference +16 dBm (nominal)

• Maximum input level port 1 or port 2 +23 dBm /±50 VDC

• Connector type (port 1 and port 2): Type N female

• Weight: 6 lbs / 2.7 kg including battery

• Dimensions (H x W x D): 292 x 188 x 72 mm (11.5” x 7.4” x 2.8”)

• Cable and Antenna Analyzer (CAT) - Optional

• What's Included:

AC/DC adapter

Localized power cord

Battery –rechargeable Li Ion

LAN cable

Soft carrying case with backpack and shoulder strap

Quick Reference Guide

Datasheet

Technical Overview

Configuration Guide

Selection Guide
