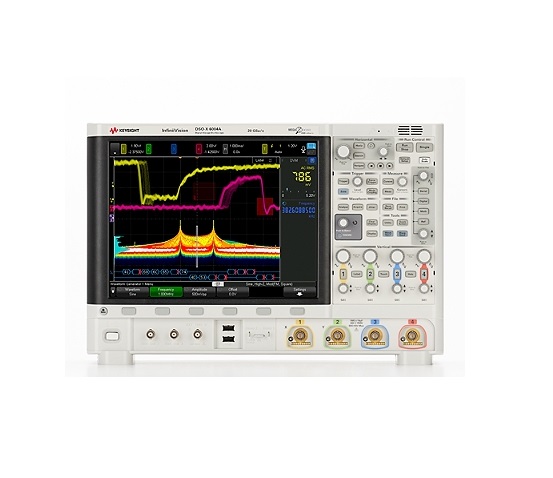

KEYSIGHT DSOX6004A InfiniiVision Oscilloscope (1 GHz (option upgrade up to 2,5Ghz, 4Ghz, 6Ghz); 4 channels; 10 GSa/s)

bandwidth: 1 GHz (option upgrade up to 2,5Ghz, 4Ghz, 6Ghz)

Input channels: 4

Maximum sample rate: 20 GSa/s half channels, 10 GSa/s full channels

Maximum memory depth: 4 Mpts half channels, 2 Mpts all channels

Display size and type: 12.1-inch capacitive multi-touch/gesture-enabled display

Waveform update rate: > 450,000 waveforms per second

Typical noise floor at 1 mV/div, 50 Ω: 115 μVrms

Dimensions: 425 mm W x 288 mm H x 148 mm D

Weight Net: 6.8 kg (15 lbs.), Shipping: 11.3 kg (25 lbs.)

Datasheet

Brochure
