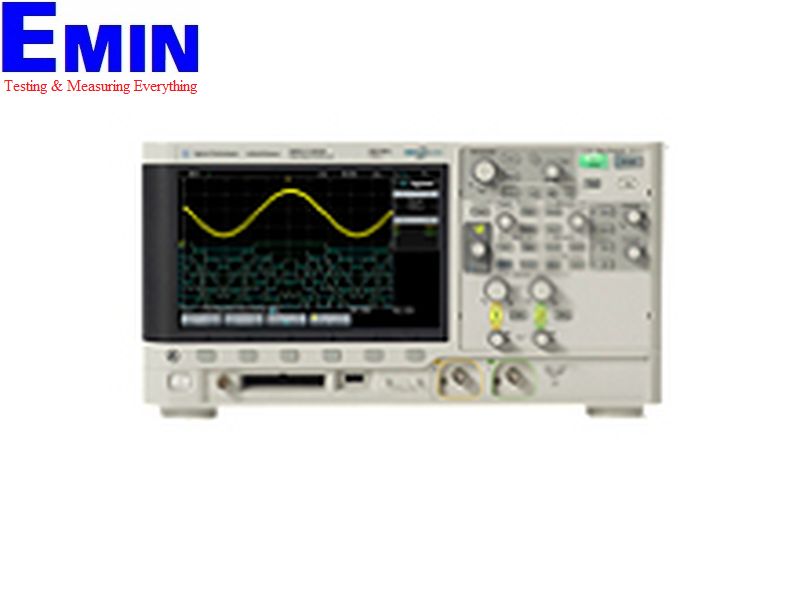

KEYSIGHT DSOX2012A Digital Storage Oscilloscope (100 MHz, 2 GSa/s, 2channels)

Bandwidth: 100 MHz

Channels: 2 Analog

Maximum sample rate: 1 GSa/s per channel, 2 GSa/s half-channel

Memory: 100 kpts half-channel, 50 kpts per channel,

Display: 8.5" WVGA color display

Vertical sensitivity: 1 mV/div to 5 V/div

Maximum input voltage: 400 Vpk

Time base range: 2 ns/div to 50 s/div

Waveform math: Add, subtract, multiply, FFT

Connectivity: USB 2.0, Supports memory devices and printers

Dimensions: 380.6x 204.4x 141.5mm

Weight: 3.85kg

Manufacturer: KEYSIGHT-USA

View Data Sheet

DSOX2MASK: Mask Limit Testing Application for InfiniiVision 2000 X-Series Oscilloscopes

DSOX2MSO: InfiniiVision 2000 X-Series Oscilloscope MSO Upgrades

DSOX2SGM: Segmented Memory Acquisition for InfiniiVision 2000 X-Series Oscilloscopes

DSOX2WAVEGEN: Built-in Function Generator Option for InfiniiVision 2000 X-Series Oscilloscopes

DSOXDVM: Integrated Digital Voltmeter (DVM) Option for InfiniiVision X-Series Oscilloscopes

DSOXEDK: Educators Training Kit for InfiniiVision 2000, 3000 and 4000 X-Series Oscilloscopes

DSOXGPIB: GPIB connection module for the InfiniiVision 2000 and 3000 X-Series oscilloscope

DSOXLAN: LAN/VGA module for the InfiniiVision 2000 and 3000 X-Series Oscilloscope

N2747A: Front Panel Cover for the InfiniiVision 2000 and 3000 X-Series oscilloscope

N6456A: Rack Mount Kit for the InfiniiVision 2000 and 3000 X-Series oscilloscope

N6457A: Soft carrying case and front panel cover for 2000 and 3000 X-Series oscilloscope
