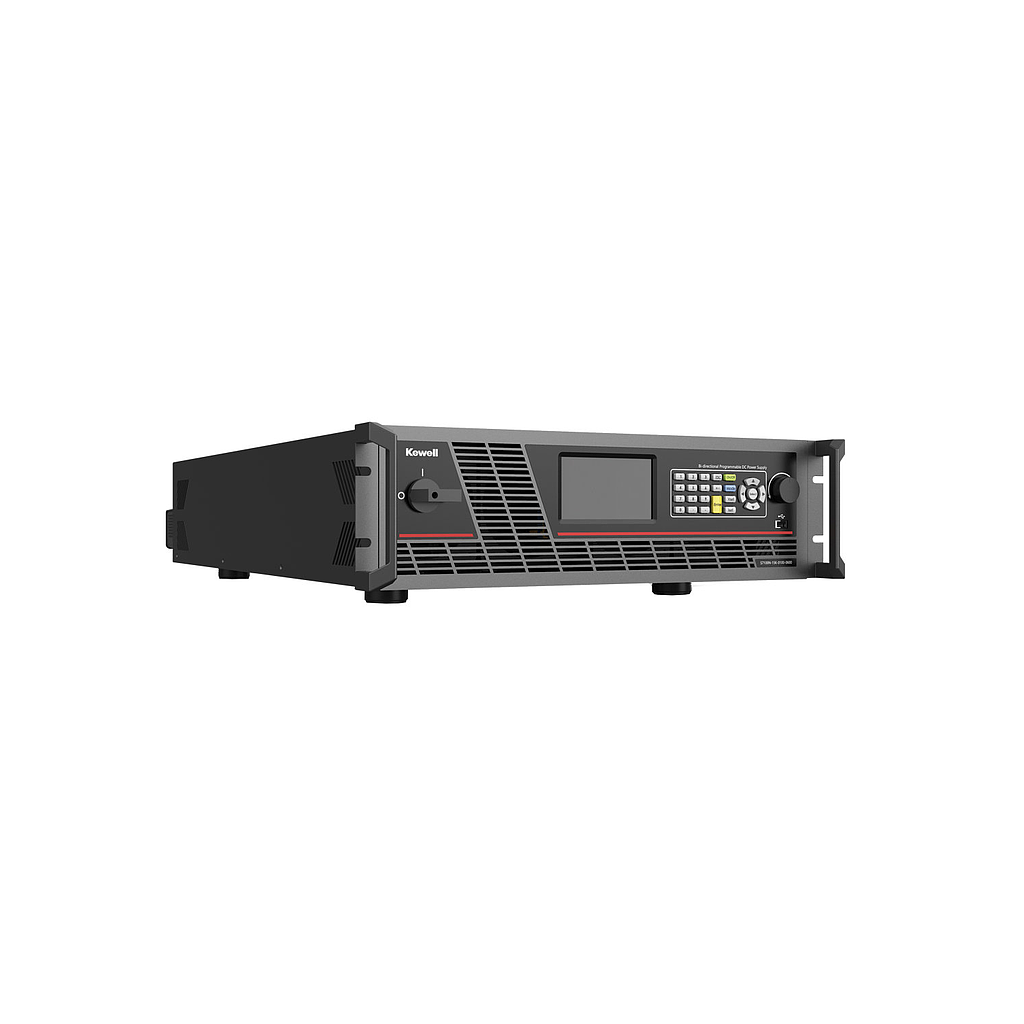

Kewell S7000UG-15K-0750-0120 Bidirectional Programmable DC Power Supply (15 kW, 750 V, 120 A)

Power: 15 kW

Voltage: 750 V

Current: 120 A

Output parameters (100V/750V and above)

Voltage accuracy: ≤0.02%F.S./≤0.05%F.S.

Current accuracy: ±0.1%F.S.

Dynamic response time: 500us/1ms

Voltage slew rate: 10V@ms/200V@ms

Current slew rate: 450A@ms/20A@ms

Efficiency: 95%

Input parameters

Grid voltage: 342 ～ 528V

Grid frequency: 47-63Hz

General parameters

Operating temperature: 0 ～ 40℃

Dimensions: 699(D)*445(W)*133(H)

DC source: ✓

IV simulation: ✓

Battery simulation: ✓

Battery charge-discharge: ✓

Function generator: ✓

Vehicle power curve: ✓

Electronic load: ✓

Communication interfaces RS485/RS232/LAN/CAN/USB: ✓
