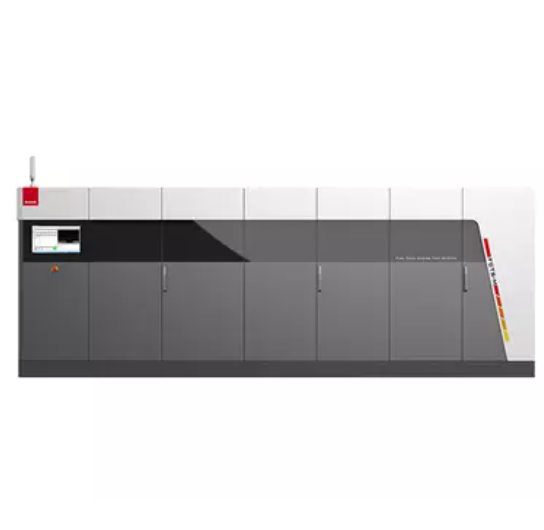

Kewell FCTS-M-100 Fuel Cell Engine Test System (100kW, 40-2000 NLPM)

Rated power: 100kW

Gas System:

Hydrogen flow range: 40-2000 NLPM

Hydrogen flow resolution: ±1%FS

Nitrogen purging: Yes

Exhaust gas mode: Mixing (water/gas separation) (Can be independently exhausted according to demand.)

Cooling System:

Internal circulation cooling: Cooling water circulation

Coolant: Deionized water

Temperature control precision: ±1℃ (steady state); ±1.5℃ (dynamic state)

Cooling method: Secondary cooling water

Conductivity monitoring: Precision≤1.5%FS

Water purging: Yes

Protection System:

Hydrogen leakage alarm: Editable

Insulation detection: Editable

Emergency stop: Emergency stop button; Indicator lights of running status*3

KDLF:

Rated power: 150kW

Type: Energy Recycling electronic load (Energy recovery is available in full power range.) Complete grid protection (overvoltage/undervoltage/overcurrent)

Current response time: ≤10ms

Voltage range: 24~800Vdc

Current range: 0~800A

General Specifications:

Control system: PLC

Human-computer interface: LCD

External communication: CAN

Internal communication: LAN

Power supply: AC 380V three-phase five-wire

Low-voltage power supply: ±24V (standard) Other power supplies (optional)

Ambient temperature: 0~40℃

Dimensions (width*depth*height)(mm): 1600*1000*1900
