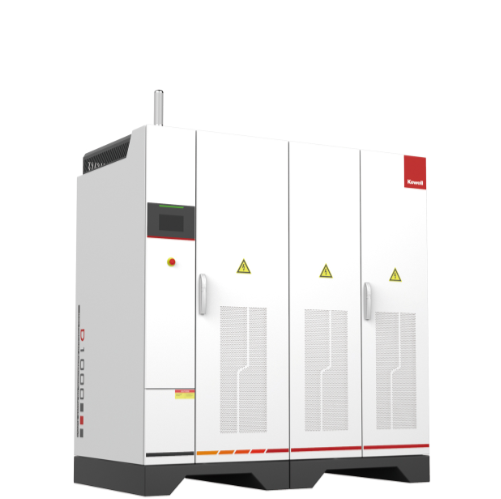

Kewell EVS-400-1000 Battery Simulator (400kW, 1000A)

Rated power (kW): 400

Rated current (A): 1000

Rated voltage (V): 400

Peak power 60s (kW): 500

Peak current 60s (A): 1250

Voltage range (V): 24-1000

Input requirements

- Phase: 3φ3W+PE

- Voltage: 380V±15%

- Frequency: 50Hz±5Hz

Output characteristics

- Voltage precision: ±(0.1%·FS+5dgt)

- Current precision: ±(0.1%·FS+5dgt)

- Response time: ≤3ms (10%-90%)

- Switching time: ≤6ms (90%- -90%)

- Voltage ripple (rms): ≤0.2%·FS

- Load regulation: 0.1%·FS

- Protection: Overvoltage/Overcurrent/Overtemp./Phase Loss/Emergency Stop
