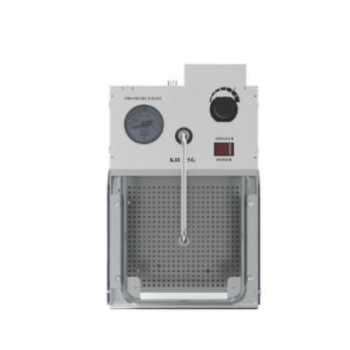

KESD KH-A5 Ionizing Dust Collecting Box

Input power supply voltage: AC220V/50HZ

Output voltage: DC 24V

Install the anti-static appliances: KZ-02C*1

Current consumption: 1100mA~1500mA

Loaded destaticizing: KZ-02C (1set)

Ion balance: Automatic ion balance system 0±15V

Applied airflow: Air (clean air containing no water or oil)

Electric actions time: 0~30s free setting

Operating pressure: 0.05-0.7Mpa free setting

Anti-static property: (within ± 1000 – ±100/ls/200mm/0.4Mpa) ±15V

Applied environment temperature: 0 ~40℃ (no condensation)

Applied environment humidity: 30-70% RH (no water drop condensation)

Piping connecting: Φ8 quick coupling

Openings size (mm): 155X123

Overall size (mm): 280X245X164

Work action area (mm): 158X140X120

Weight (kg): 4.6kg
