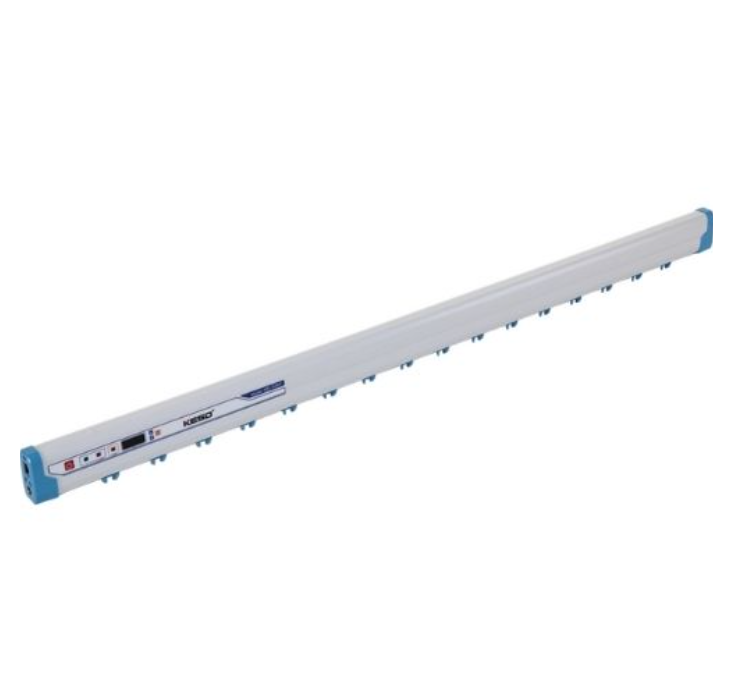

KESD KE-108X Ionizing Air Bar

Input voltage: DC24V±5%

Iron generating way: Corona discharge way

Display LED

H.V(green): High voltage normal operation indicator light is on

ALARM (red): The indicator light is on when discharge is abnormal and electric circuit is abnormal;

CLEANIKIG (yellow): The indicator is on and the buzzer prompts when reaching the set cleaning time.

Voltage regulation mode/ applied voltage: High frequency AC way/±2200V

Ion balance: Within ±20 V(measuring distance 300mm,supply air pressure 0.3MPa)

Destaticizing time: 2.0S(measuring distance 300mm, supply air pressure 0.3MPa)

Cleaning timer set time: Can be set within 0-999 hours

Ozone generation amount (ppm): Within 0.03pp m(measuring distance 50mm,supply air pressure 0.2MPa )

Applicable fluid: Air(cleaning air of which the water and oil has been removed)

Air pressure application range (MPa): 0.01-0.5MPa

Use ambient temperature: Indoor 0~40℃ CM0T

Use ambient humidity: 15~75%Rh (no condensation)
