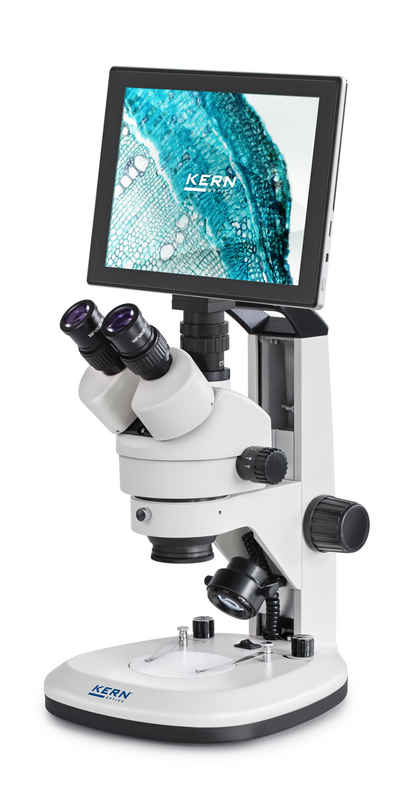

KERN OZL 468T241 Digital Microscope Set (Trinocular 0,7x- 4,5x)

Tube type: Trinocular

Interfaces: WiFi, USB 2.0, HDMI, MicroSD card slot

Stand type: mechanical

Zoom [Max]: 4,5x

Zoom [Min]: 0,7x

mcuDetails: Quad Core Cortex-A17; 1,8 GHz

Illuminance: Reflected light, Transmitted light

Display type: LCD touch

Optical system: Greenough

GTIN/EAN number: 4045761228566

Working distance: 105 mm

Camera - Framerate: 30 fps

Display resolution: 2048×1536

Focusing mechanism: coarse drive

Camera - Resolution: 5 MP

Dimension (W×D×H): 300×240×640 mm

Display screen size: 9,7"

Magnification ratio: 6,4:1

Ocular visual field: 20 mm

Sample height [Max]: 140 mm

Camera - Sensor size: 1/2,8"

Camera - Sensor type: Sony CMOS

C-Mount magnification: 0,5x

Camera - Colour depth: Colour

Ocular magnifications: 10x

Illumination type incident light: LED

Illumination type transmitted light: LED

Illumination intensity incident light: 3 W

Illumination intensity transmitted light: 3 W

Datasheet
