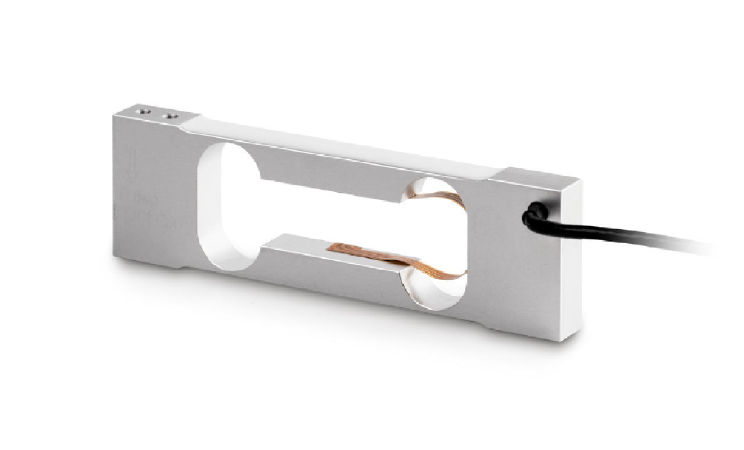

KERN CP 300-0P4 Single-point Loadcell (0.3 kg)

Construction

Cable length: 40 cm

Dimensions (W×D×H): 110 mm x 33 mm x 10 mm

Dimensions of weighing plate (W×D×H): 200 mm x 200 mm x 0 mm

Measuring system

Load cell connection: 4-wire

Nominal sensitivity: 0,900 mV/V

OIML class: L

Resolution Load cell – Verifiable: 3000 e

Weighing capacity [Max]: 300 g

Y value: 4667

Environmental conditions

Maximum operating temperature: 50 °C

Maximum ambient temperature: 40 °C

Minimum operating temperature: -20 °C

Minimum ambient temperature: -10 °C
