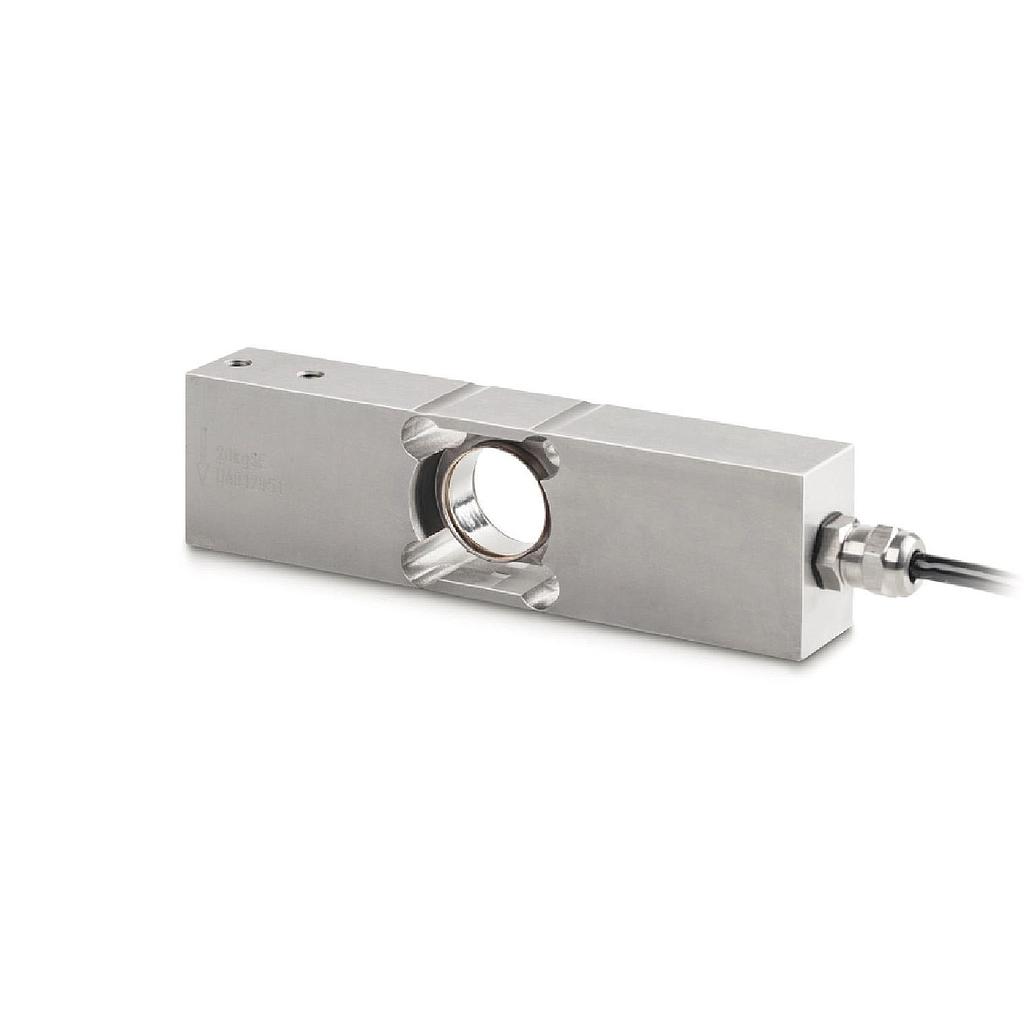

KERN CP 200-3P9 Single-point Loadcell (200 kg)

*Construction

Cable length: 3 m

Dimensions (W×D×H): 174 x 45 x 64 mm

Dimensions of weighing plate (W×D×H): 800 mm x 800 mm x 0 mm

*Measuring system

Combined Error: 0,023 %

Load cell connection: 4-wire

Nominal sensitivity: 2 mV/V

OIML class: C3

Resolution Load cell – Verifiable: 3000 e

Weighing capacity [Max]: 200 kg

Y value: 10000

*Environmental conditions

Maximum operating temperature: 65 °C

Maximum ambient temperature: 40 °C

Minimum operating temperature: -35 °C

Minimum ambient temperature: -10 °C
