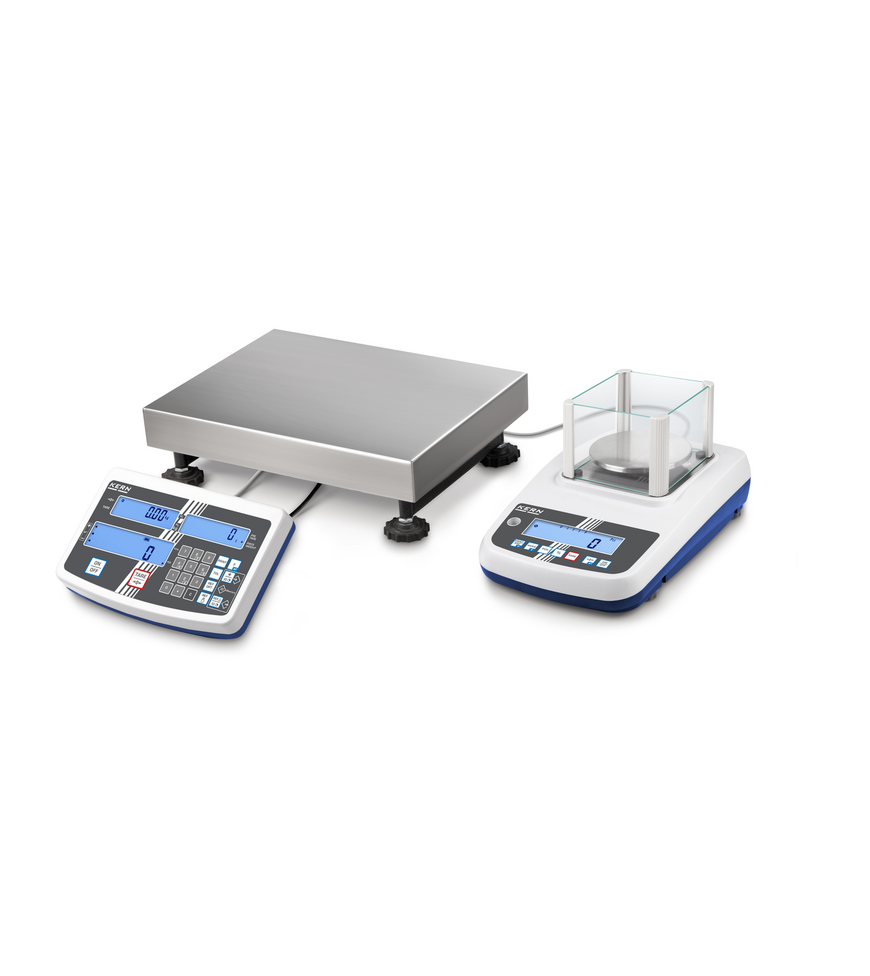

KERN CCA 100K-5M Counting system (150kg, 10mg)

Quantity scale - Weighing capacity [Max]: 60 kg; 150 kg

Reference scale - Readability [d]: 10 mg

Units: kg

Dimensions weighing platform (W×D×H): 500×400×140 mm

Dimensions weighing surface (W×D): 500×400 mm

Reference scale - Linearity: 30 mg

Quantity scale - Linearity: 0.02 kg; 0.05 kg

Ambient temperature: 0 °C – 40 °C

Smallest piece weight when piece counting - normal conditions: 200 mg

Display type: LCD

Display digit height: 20 mm

Material weighing plate: metal, lacquered

Display device cable length: 5 m

Material housing: plastic

Net weight approx.: 16 kg

IP protection - complete device: IP23

IP protection - platform: IP65

IP protection - load cell: IP65
