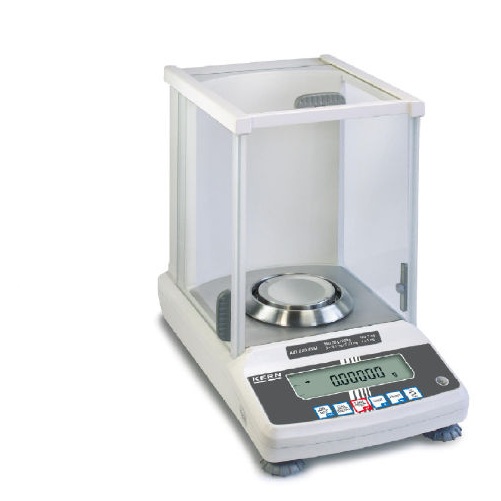

KERN ABT 120-5DNM Analytical balances (42g/120 g, 0.00001g/0.0001g)

Description:

Automatic internal adjustment in the case of a change in temperature > 0,5 °C and time-controlled every 4 hours

• Dosage aid: High-stability mode and other filter settings can be selected
• Simple recipeweighing and documenting with a combined tare/print function. In addition, the mixing ingredients for the recipe are numbered automatically and printed out with their corresponding number and weight value
• Identification number: 4 numeric positions, printed on calibration protocol
• Automatic data output to the PC/printer every time the balance is steady

Single-cell advanced technology:
Fully automatic manufactured weighing cell from one piece of material

• Stable temperature behaviour
• Short stabilisation time: Steady weight values within approx. 5 sec under laboratory conditions
• Shock proof construction
• High corner load performance

Construction:

Casing material: metal

Dimensions housing (WxDxH): 217 mm x 356 mm x 338 mm

Level indicator: yes

Material weighing plate: stainless steel

Revolving screw feet: yes

Weighing space (WxDxH): 168 mm x 172 mm x 223 mm

Weighing surface (d): 80

Display:

Display digit height: 1,400 cm

Service:

DKD Certificate: 963-101

Verification: 965-201

Technical data about verification:

Verification approval conforming to 90/384/EEC: yes

Verification by KERN possible: yes

Verification class: I

Verification value: 1 mg

Input voltage: 220 V - 240 V AC 50 Hz

Functions:

Counting function: yes

Dynamic Weighing function: yes

Function to save totals: yes

Mixture function: yes

Net total function: yes

Percentage determination: yes

Standby function: yes

Suspended weighing: Loop

Measuring system:

Adjustment options: Internal calibration (auto) Internal calibration (manual) External calibration

Linearity: 0,05 mg/0,200mg

Minimum load: 1 mg

Readout [d]: 0,010 mg/0,100mg

Reproducibility: 0,020 mg/ 0,100mg

Stabilisation time: 5 s

Weighing range [Max]: 42g/120 g

Weighing units: ct g

Environmental conditions:

Maximum humidity: 80 %

Maximum operating temperature: 30 °C

Minimum ambient temperature: 10 °C

Counting:

Counting resolution: 120000

Mininum piece weight at piece counting: 1 mg

Reference quantity: 10 20 50 100

Reference weight: yes
