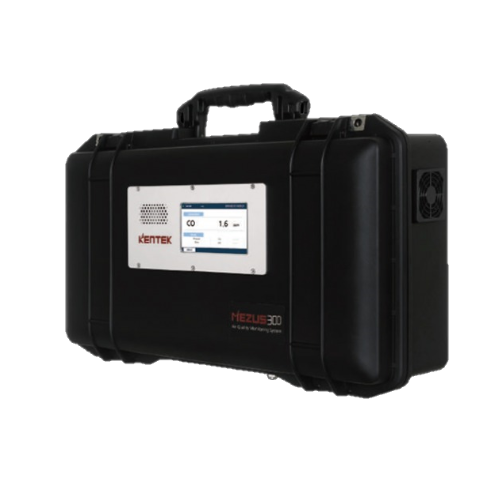

Kentek MEZUS 300 CO Portable Analyzer (50 / 100ppm)

Measuring items: Carbon monoxide(CO) in ambient air

Measuring method: Non-dispersive infrared analysis(GFC NDIR)

Ranges: 0 - 50 / 0 - 100ppm (selectable)

Lower Detectable Limit: Less than 0.05ppm

Repeatability: within ±1% of span gas concentration

Zero drift: Less than 2ppm

Span drift: within ±1 % / full scale (1 day)

Response time(95%): Less than 60 seconds (T95)

Linearity: within ±1 % / full scale

Precision: within 1 % of reading or 1 ppm

Ambient temperature: 5 - 40℃

Analog output: 0 - 1V / 0 - 5V or 4 - 20mA (option)

Sample flow rate: Stabilized flow control by 800cc/min Critical Orifice

Particulate filter: 47mm Teflon® Filter

Display: 5 inch Graphic LCD

Comport: Ethernet, USB 2.0

Power requirement: 220VAC/60Hz or 230VAC/50Hz

Internal data memory: Measuring data, Operation history, Messages, Alert (store up to 1year)

Datasheet
