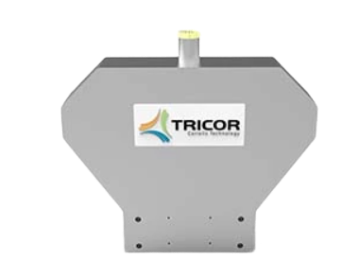

KEM TCMH 0450-HC-SSOS Coriolis Mass Flow Meter for High Pressure Liquid Applications (414 bar [6,000 psi])

Nominal Flow Rate

@ 850 kg/m3: (Pressure Drop max. 2 bar)

65 kg/h @ 30 cSt [2.4 lb/min @ 30 cSt]

Pressure rating: 414 bar [6,000 psi]

Accuracy

Flow: ±0.2 % of flow rate

Mass Repeatability: ±0.075 % of flow rate

Zero Stability: 0.34 kg/h [0.16 kg/h] 0.012 lb/min [0.005 lb/min]

Temperature: ±1 °C ±0.5 % of flow rate [±1,8 °F ±0.5 % of flow rate]

Operating conditions-process

Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F]

Medium: Liquid

Pressure Effect on Sensitivity: 0.0002 % / bar [0.000014 % / psi]

Operating conditions-environment

Ambient Temperature: -40 °C ... +70 °C [-40 °F ... +158 °F]

Relative Humidity: max. 95 %

Materials (Wetted Parts)

NACE MR0175/MR0103

Tubes: 1.4404 [AISI 316L]

Case: 1.4404 [AISI 316L]

Flow Splitter: 1.4404 [AISI 316L]

Burst protection

Rupture Disc: G1/2”

Connectivity

Flow Meter: 3/8” Autoclave (MP)

Signal Cable Connection (For triple Ex approval (Ex3)): Push-Pull connector
