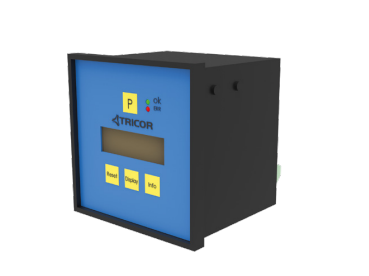

KEM TCE 8000 Coriolis transmitter (4W, 0.5 - 10,000 Hz)

Display: back-lit LCD screen 132 x 32 dot

Programmed via front keyboard or TRICOR configurator RS485 (Modbus RTU)

Supply Voltage: 24 V DC

Power Consumption: 4 W

Interfaces: RS485 (Modbus RTU)

Housing Material: Noryl

Protection Class:

front: IP50

rear: IP30

ANALOG OUTPUT

Current Outputs (2x): 4 ... 20 mA passive

Output Value (programmable): flow, total mass, total volume, density, temperature

PULSE OUTPUT

Frequency Range: 0.5 - 10,000 Hz

Output Signal: active push-pull output for flow rate

STATUS IN- AND OUTPUT

Status Output: push pull programmable

in TOTAL mode: 0.5 - 100 Hz

in FREQUENCY mode: 0.5 - 10,000 Hz

Control Input: programmable

ANALOG INPUT (OPTION)

Input Type: 4 ... 20 mA active for two-wire passive pressure sensor

TEMPERATURE

Ambient Temperature (DC): ±0 °C ... +60 °C [-32 °F ... +140 °F]

Storage and Transport: -20 °C ... +70 °C [-4 °F ... +158 °F]

CONNECTIVITY

Electrical Connections: cage clamp terminals

Sensor connector: D-SUB, 9-pin, female thread
