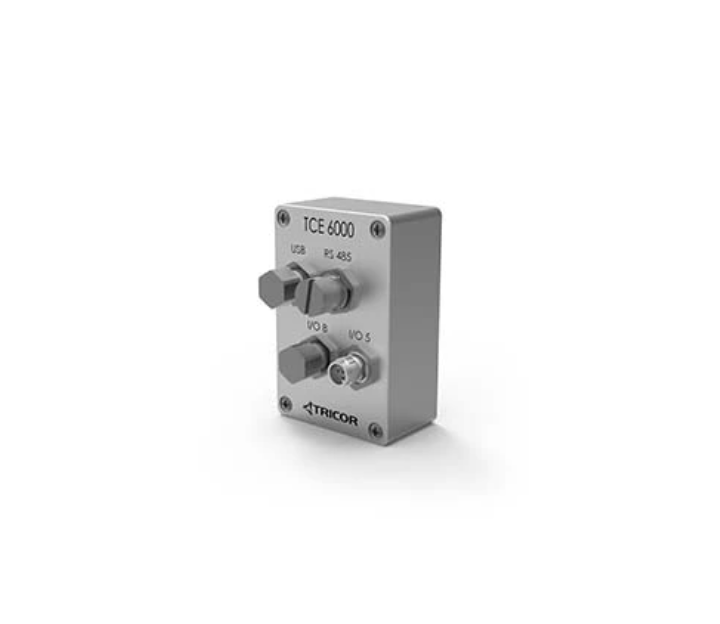

KEM TCE 6000 Coriolis transmitter (Max. 7W, 0.5 - 10,000 Hz)

Supply Voltage: 24 V DC

Power Consumption: max. 4 W

Interfaces: RS485, USB (option)

Housing Material: Aluminum

Protection Class: IP65

Programming: via TRD 8001 or via interface

ANALOG OUTPUT

Current Output: 4 ... 20 mA active

Output Value (programmable): flow, total mass, total volume, density, temperature

PULSE OUTPUT

Frequency Range: 0.5 - 10,000 Hz

for ESTA (OPTV receiver): 0.5 - 5,000 Hz

Output Signal: active push-pull output for flow rate

optional:

isolated optical pulse output

STATUS IN- AND OUTPUT

Status Output: push pull programmable (option)

in TOTAL mode: 0.5 - 100 Hz

Control Input (programmable): Standard: 1 input/option: 2 inputs

optional: insulated optical control input

TEMPERATURE

Ambient Temperature: -40 °C ... +70 °C [-40 °F ... +158 °F]

Storage and Transport: -40 °C ... +80 °C [-40 °F ... +176 °F]

CONNECTIVITY

Electrical Connections: connectors M12
