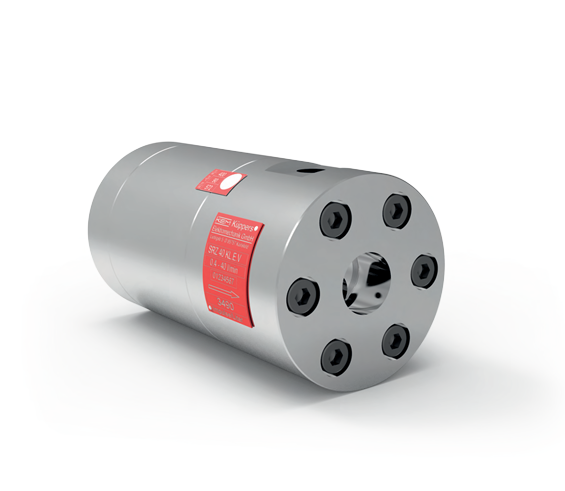

KEM SRZ 400 KL.E.V Helical Flow Meters for high-viscosity, non abrasive and lubricating fluids (4~400L/ min)

Application: Filling processes

Process Medium:

Hydraulic fluids, glycol, grease

Lubricating

Medium/high viscosityy

Attributes:

Stainless steel body

Stainless steel ball bearing

Bigger tolerances

Technical Data – Sizes

Measuring Range (l/min): 4 to 400

K-Factor (pulses/l): 214

Max. Pressure (bar/psi): 200 [2,900]

Frequency (Hz): 14 to 1,450

Weight (kg): 34

Technical Data – General

Measuring Accuracy: Default: ±0.5 %; Premium: ±0.25 %

Repeatability: ±0.05 % (under the same conditions)

Materials

Housing: as per DIN 1.4305 [AISI 303]

Gears: as per DIN 1.4122

Bearing: ball bearing

Thread: BSPP

Sensor Ports: M14x1.5

Seals: FKM

Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)

Dimensions: See dimensional drawing (In details)

See datasheet for choosing suitable configurations!

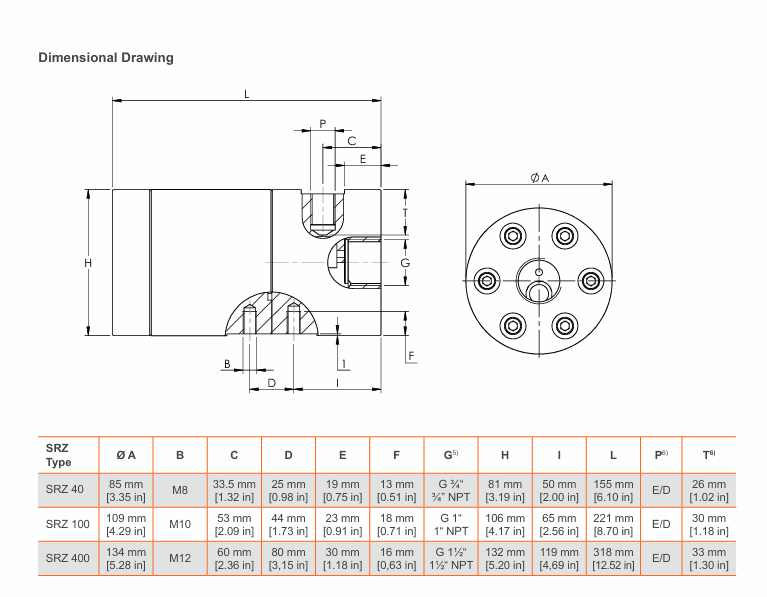

Dimensional drawing
