KEM HM P 09 Pelton Wheel Flow Meters (3.0 - 30 L/min)

Technical Data – Sizes

HM types: HM P 09

Measuring Range (l/min): 3.0 - 30 L/min

K-Factor (pulses/l): 980 (pulses/l)

Max. Pressure: 20 [290] (bar/psi)

Max. Frequency (Hz): 520 Hz

Weight: 0.9 kg

Technical Data – General

Repeatability: ±0.5 % (under the same condition)

Linearity: ±2.5 % of actual flow (viscosity = 1 mm²/s)

Viscosity Range: 0.8 up to 10 mm2/s

Materials

Housing: as per DIN 1.4305 [AISI 303]

Wheels: as per DIN 1.4122]

Bearing: Brass, Ceramics

Seals: FKM, Graphite

Medium Temperature: -60 °C up to +350 °C [-76 °F up to +662 °F]

Dimensions: See dimensional drawing

See datasheet for choosing suitable configurations!

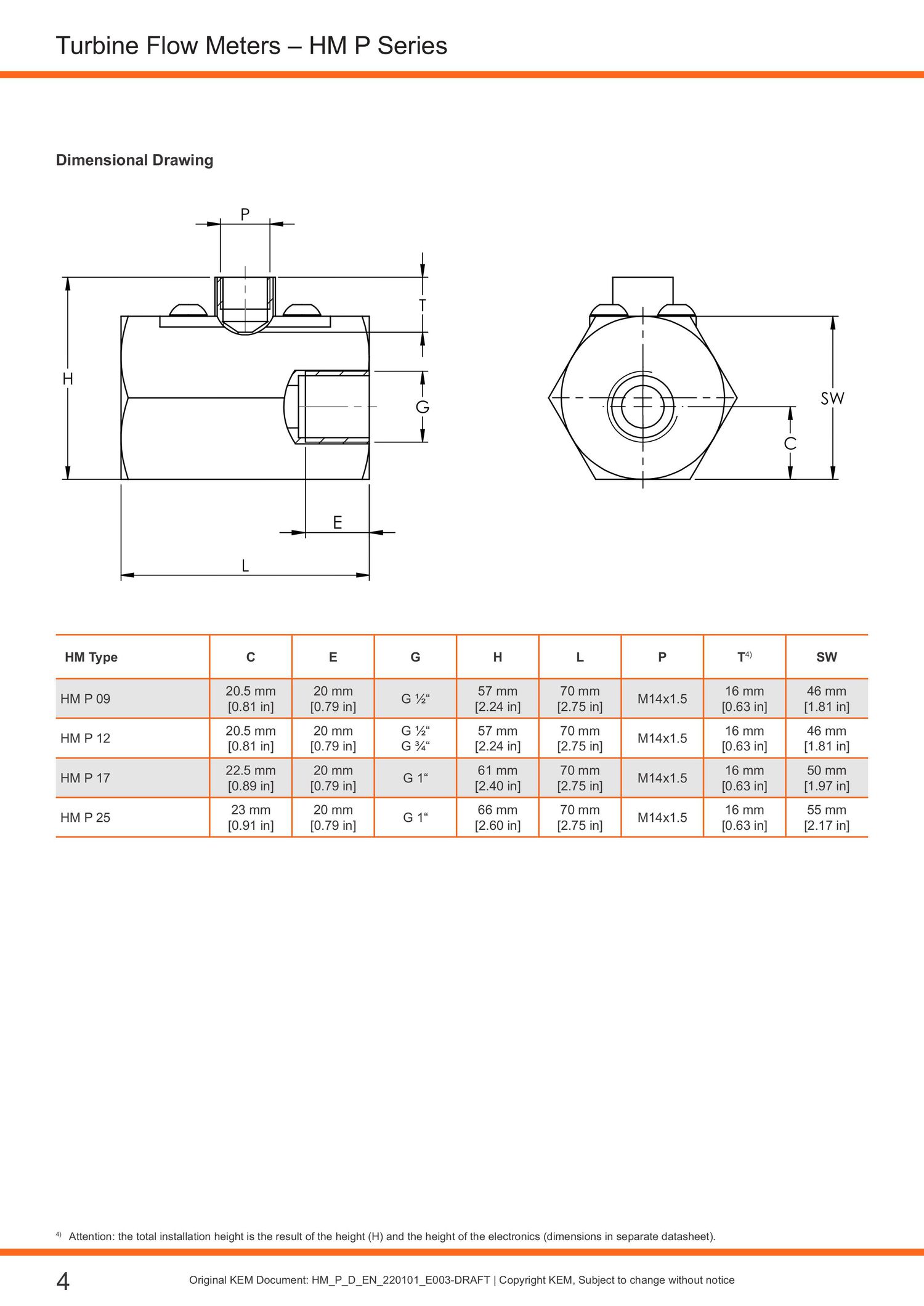

Dimensional Drawing
