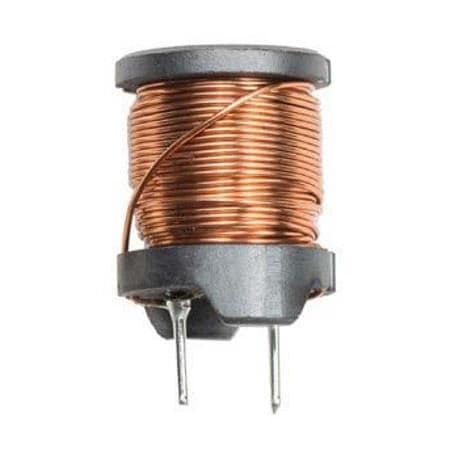

KEMET SBCP-11HY221H Wirewound 220uH 10% 0.95A DCR=400mOhms
ManufacturerKEMET(View more products from this manufacturer)
ModelSBCP-11HY221H
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 11 mm
Diameter: 12.5 mm
Core Type: Drum
Shielding: Unshielded
Tolerance: 10 %
Inductance: 220 uH
Application: Commercial
Termination: Standard
Unit Weight: 3.300 g
Lead Spacing: 5 mm
Core Material: Ferrite
Lead Diameter: 0.6 mm
Mounting Style: PCB Mount
Test Frequency: 10 kHz
Termination Style: Radial
Maximum DC Current: 950 mA
Maximum DC Resistance: 400 mOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 20 C
