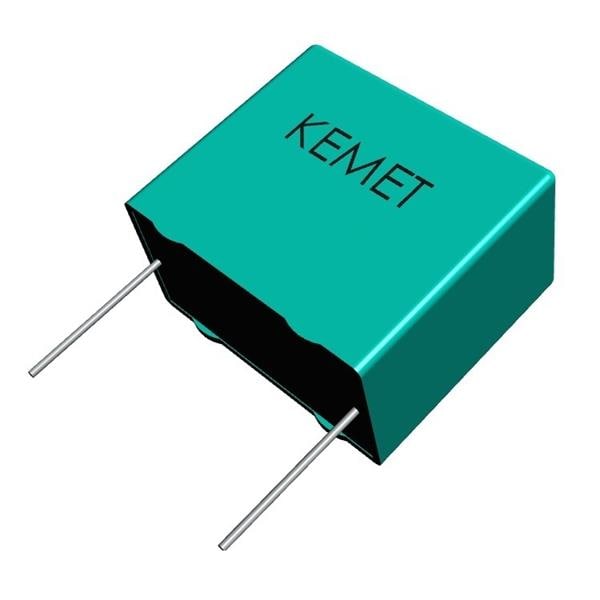

KEMET PHE850ED5470MD13R06L2 Metallized Polypropylene Safety Film Capacitor 300V 0.047uF 20% LS=22.5mm
ManufacturerKEMET(View more products from this manufacturer)
ModelPHE850ED5470MD13R06L2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 6.5 mm
Height: 14.5 mm
Length: 26 mm
Tolerance: 20 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 0.047 uF
Unit Weight: 3.415 g
Lead Spacing: 22.5 mm
Lead Diameter: 0.8 mm
Safety Rating: Y2
Number of Pins: 2 Pin
Capacitance - nF: 47 nF
Capacitance - pF: 47000 pF
Termination Style: Radial
Voltage Rating AC: 300 VAC
Voltage Rating DC: 1.25 kVDC
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 55 C
