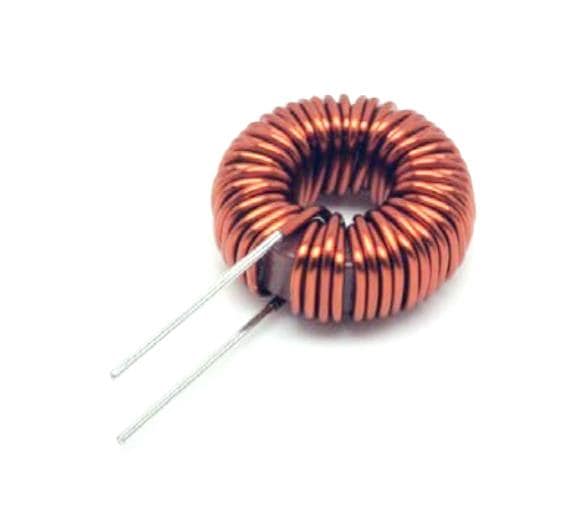

KEMET PHBC14-1R2A0120V Toroidal 120uH 8A 20% DCR=29.9mOhms
ManufacturerKEMET(View more products from this manufacturer)
ModelPHBC14-1R2A0120V
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 18.6 mm
Diameter: 34 mm
Shielding: Unshielded
Tolerance: 20 %
Inductance: 120 uH
Application: Power
Termination: Standard
Unit Weight: 47 g
Lead Spacing: 15 mm
Core Material: Ferrite
Lead Diameter: 1.2 mm
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: Radial
Maximum DC Current: 8 A
Maximum DC Resistance: 29.9 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
