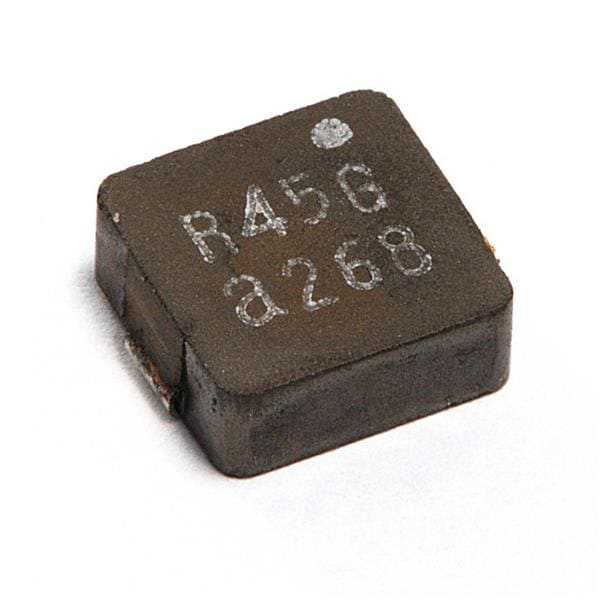

KEMET MPCG1040LR88 High Power Inductor 0.88uH 20% 19A DCR=2.3mOhms
ManufacturerKEMET(View more products from this manufacturer)
ModelMPCG1040LR88
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 10 mm
Height: 4 mm
Length: 11.5 mm
Core Type: Molded
Shielding: Shielded
Tolerance: 20 %
Inductance: 880 nH
Application: Power
Termination: Standard
Unit Weight: 3.207 g
Core Material: Metal Composite
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 17 A
Saturation Current: 19 A
Maximum DC Resistance: 2.3 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
