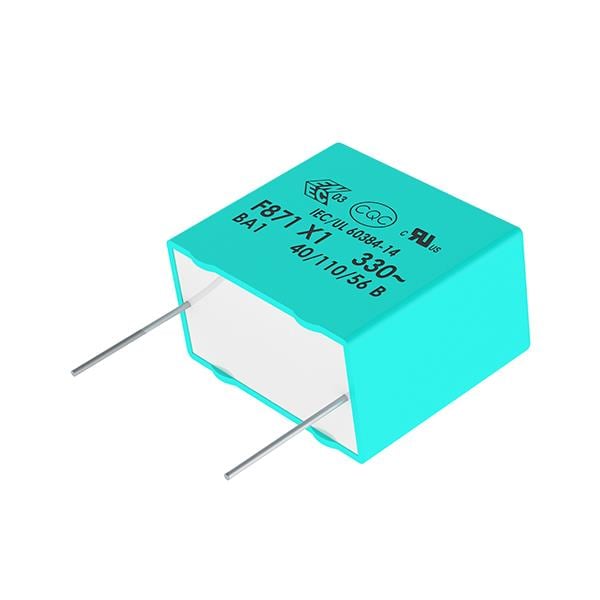

KEMET F871BE563K330C Class X1 Metallized Polypropylene Film Capacitors 800V 0.056uF 10% LS=15mm
ManufacturerKEMET(View more products from this manufacturer)
ModelF871BE563K330C
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 1000 Hour
Width: 5.5 mm
Height: 12.5 mm
Length: 18 mm
Tolerance: 10 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 0.056 uF
Lead Spacing: 15 mm
Lead Diameter: 0.8 mm
Number of Pins: 2 Pin
Capacitance - nF: 56 nF
Capacitance - pF: 56000 pF
Termination Style: Radial
Voltage Rating AC: 330 VAC
Voltage Rating DC: 800 VDC
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
