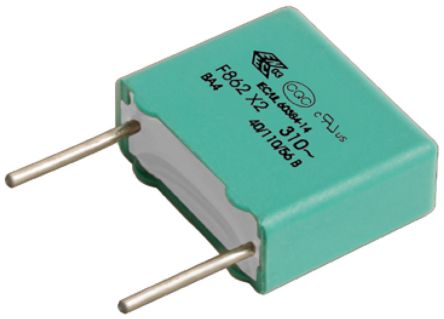

KEMET F862BS334K310ALR0L Metallized Polypropylene 630V 0.33 uF 110C 10% 2 Pin LS=15 mm AEC-Q200
ManufacturerKEMET(View more products from this manufacturer)
ModelF862BS334K310ALR0L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 10 mm (0.394 in)
Height: 16 mm (0.63 in)
Length: 18 mm (0.709 in)
Tolerance: 10 %
Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 0.33 uF
Unit Weight: 4.097 g
Lead Spacing: 15 mm (0.591 in)
Lead Diameter: 0.8 mm
Qualification: AEC-Q200
Number of Pins: 2 Pin
Capacitance - nF: 330 nF
Capacitance - pF: 330000 pF
Termination Style: Radial
Voltage Rating AC: 310 VAC
Voltage Rating DC: 630 VDC
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
